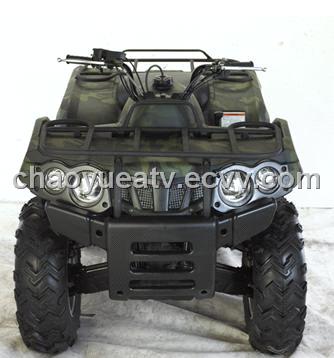

400CC 4WD CVT ATV with EEC/EPA

Detailed Product Description

Specifications
ENGINE
Type	387cc,Water cooled,4-stroke,1-cylinder
Bore x Stroke	83mm x 71.6mm
Compression Ratio	9.5:1
Carburetion	PD33J
Ignition	CDI
Starting	Electric/pull start
Transmission	F-N-R
Drive Train	Axle
CHASSIS
Suspension	Independent double swing arm
Suspension/Rear	Single swing arm
Brakes/Front	Dual ventilated hydraulic disc
Brakes/Rear	Ventilated Hydraulic disc
Tires/Front	AT25 x 8-12 radial
Tires/Rear	AT25 x 10-12 radial
DIMENSIONS
L x W x H	1990mm x 1060mm x 1150mm
Seat Height	830mm
Wheelbase	1235mm
Ground Clearance	220mm
Fuel Capatity	13.6L
Dry Weight	278kg
Loading Quantity	10pcs/20'GP;24pcs/40'GP;36pcs/40HQ
OTHER
Lighting	12V35W/35W x 2,12V5W x 2(front); 12V.5W/21W x 1(rear)
