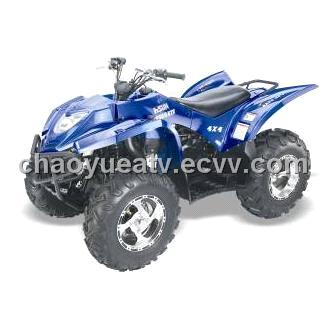

500cc CVT ATV/QUAD

Detailed Product Description

Type	471CC,Water cooled,4-stroke,1-cylinder
Bore x Stroke	84.5mm x 84mm
Compression Ratio	9.3:1
Carburetion	PD33G
Ignition	CDI
Starting	Electric
Transmission	L-H-N-R-P
Drive Train	Axle
CHASSIS
Suspension	Independent double swing arm
Suspension/Rear	Independent double swing arm
Brakes/Front	Dual ventilated hydraulic disc
Brakes/Rear	Ventilated Hydraulic disc
Tires/Front	AT23 x 8-12 radial
Tires/Rear	AT23 x 10-12 radial
DIMENSIONS
L x W x H	1978mm x 1063mm x 1095mm
Seat Height	840mm
Wheelbase	1235mm
Ground Clearance	220mm
Fuel Capatity	13.5L
Dry Weight	265kg
OTHER
Lighting	12V35W/35W x 2,12V5W x 2(front);turning light 12V10W x 4(F&R); 12V.5W/21W x 1(rear)
Warranty	6 months(limited factory warranty)
