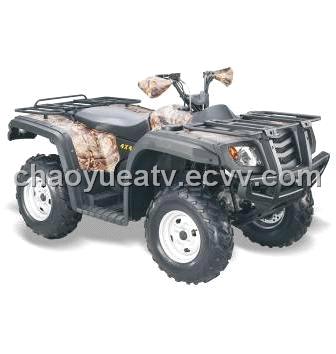

700CC ATV WITH EEC/EPA

Detailed Product Description

ENGINE
Type	686cc,Water cooled,4-stroke,1-cylinder
Bore x Stroke	102mm x 84mm
Compression Ratio	9.1:1
Carburetion	PD33G
Ignition	CDI
Starting	Electric
Transmission	L-H-N-R-P
Drive Train	Axle
CHASSIS
Suspension	Independent double swing arm
Suspension/Rear	Independent double swing arm
Brakes/Front	Dual ventilated hydraulic disc
Brakes/Rear	Ventilated Hydraulic disc
Tires/Front	AT25 x 8-12 radial
Tires/Rear	AT25 x 10-12 radial
DIMENSIONS
L x W x H	2220mm x 1190mm x 1250mm
Seat Height	960mm
Wheelbase	1360mm
Ground Clearance	275mm
Fuel Capatity	18L
Dry Weight	265kg
OTHER
Lighting	12V35W/35W x 2,12V5W x 2(front);turning light 12V10W x 4(F&R); 12V.5W/21W x 1(rear)
Warranty	6 months(limited factory warranty)
