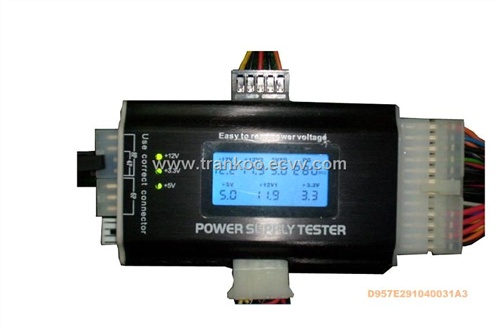

ATX PSU Tester with LCD Display(+/-0.01V)

Detailed Product Description

When you repairing computers, power supply units ever caused the most problems.  When a PSU begins to fail, or is faulty out of the box, it is sometimes difficult to determine because the symptoms are similar to other faulty hardware components.Now help with this ATX PSU Tester with a digital LCD display(+/-0.01V),all are easy to be done for these all. It is convinced how important this tool is, and it suits for every technician, overclocker, enthusiast, and even gamers could benefit.

Features:PS-224

  • LCD displays ATX power voltages
  • Tests 20-pin and 24-pin power supplies
  • Tests SATA power
  • Tests Pentium 4 power connector
  • Tests PCI-Express power connectors
  • Tests Xeon power connectors
  • Tests Floppy drive connectors
  • Tests standard 4-pin power supply connectors
  • Tests for +3.3V, -12V, PG, +5VSB, +12V, -5V, +5V outputs
  • Aluminum Case
  • Accurate Voltage indicator +/- 0.1V
  • Displays ATX P.G. values
  • Low or High PG values alarm
  • ATX output connectors check
  • Over voltage alarm
  • No Voltage alarm
  • Low Voltage alarm

Specifications:

  • Case Material: Aluminum
  • Thickness: 1.0mm
  • Dimensions: 126x63.7x17.5mm
  • Characteristic: LCD Monitor and Pocket size
  • Color: Black
  • NW: 13.5KG, GW: 14.5KG, Cu/ft: 1.4

Each Voltage Normal Range:

+5V, +3.3V, +5VSB is ±5%
+12V1, +12V2, -12V is ±10%

 Display

Normal Voltage range

Display Voltage range

    Lower (A) Higher (B) Min. (C) Max. (D)
+5V 5.0V +4.75V +5.25V 4.0V 6.0V
-12V -12V -11V -13V -10V -14V
+12V1 12V 11V +13V 10V 14V
+12V2 12V 11V +13V 10V 14V
+3.3V 3.3V +3.14V +3.47V 2.0V 4.5V
+5VSB 5V +4.75V +5.25V 4.0V 6.0V
PG   0ms 990ms
