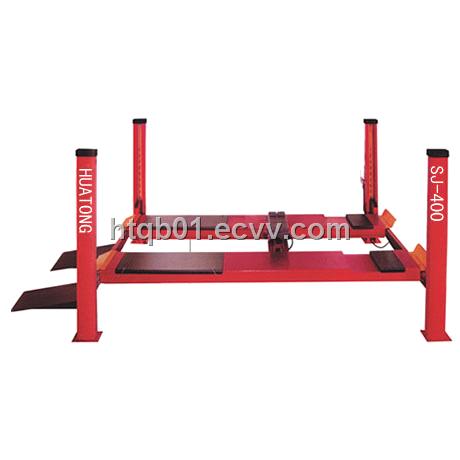

Four Post Lift

It is an ideal lift specially designed for all kinds of precision work need to be carried out on the vehicle.

There are two solid built platforms and two drives in ramps that offer all the conveniences for the operator to lift the vehicle with ease. The width of this lift permits the used of adjustable turntable for the front wheels of the vehicle and the lengthened sliding table plate at the rear permits the used of this lift on various vehicles that available in the market with differences on the wheel distances.

The electrical control panel box and the hydraulic station are being fixed on the main column for easy reach by the operator without occupying and additional any space inside the workshop.



Lifting Capacity           3500kg/4000kg/5000kg/6000kg

Lifting Height             1800mm

Lifting Time               50~60s

Total Length               5230mm

Total Height               2060mm

Total Width                3100mm

Power Supply              220v/380v

Net weight                1300kg/1400kg/1500kg/1650kg

Packing dimension        4400*700*1100mm

NOTE: No more notice information if the technical date modified

The security on operating the lift is being ensured by reliable en-lock safety system with the lifting and the lowering of the lift being carried out by means of an electrically operated control box fixed on the column.



SPECIFICATIONS:  Different above SJ-400

Net weight                1400kg/1500kg/1650kg/1750kg

Packing dimension        4400*700*1150m
