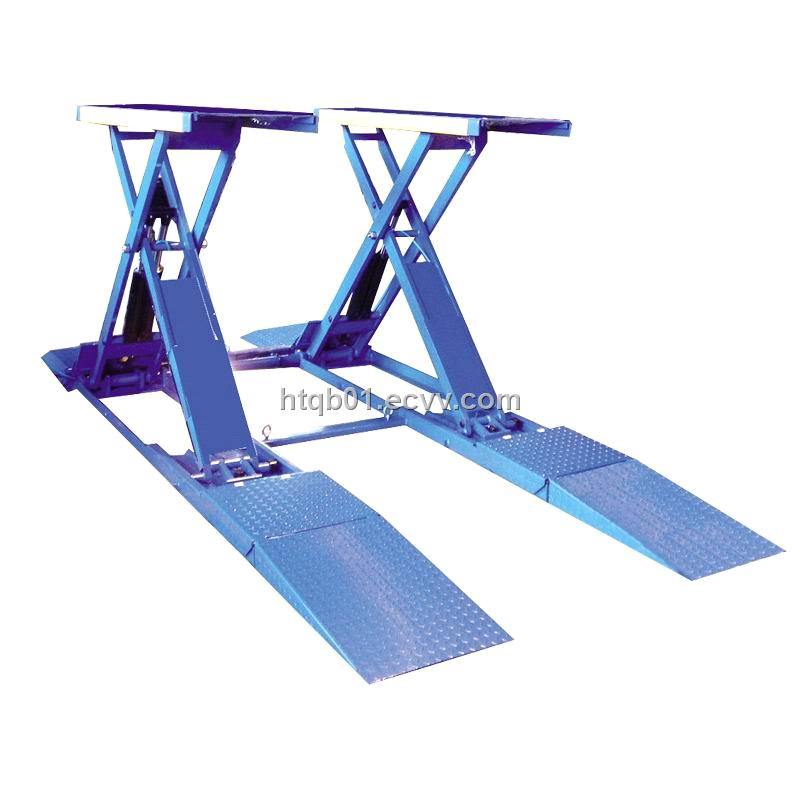

SCISSOR LIFT

Due to its ultra low main structure (110mm) construction, it permits vehicle to pass in and out conveniently. Front and rear ramps are installed for the convenience of vehicle entry from either direction.

It is extremely simple to operate the lift with safety locking device being constructed to stop the lift from descending further when electricity supply is being cut-off suddenly.



Lifting Capacity          3000kg

Lifting Height            1650mm

Lifting Time              50-60s

External Dimensions     4060*1900*1650mm

Power Supply            380v/220v

Net Weight             950kg

Packing dimension  2600*2000*240mm / 700*550*500mm / 380*340*900mm



Due to its ultra low main structure (135mm) construction, it permits vehicle to pass in and out conveniently. Front and rear ramps are installed for the convenience of vehicle entry from either direction. The manually extendable and widened lifting platforms are most suitable for the servicing and maintenance on mini van and vehicle with large body frame.

It is extremely simply to operate the lift with safety locking device being constructed to stop the lift from descending further when electricity supply is being cut-off suddenly.





Lifting Capacity             3000kg

Lifting Height                1800mm

Lifting Time                   50-60s

External Dimensions     4060*1900*1800mm

Power Supply               380v/220v

Net Weight                  1400kg

Packing dimension   3100*2000*245mm / 750*570*320mm / 380*340*900mm



NOTE: No more notice information if the technical date modified
