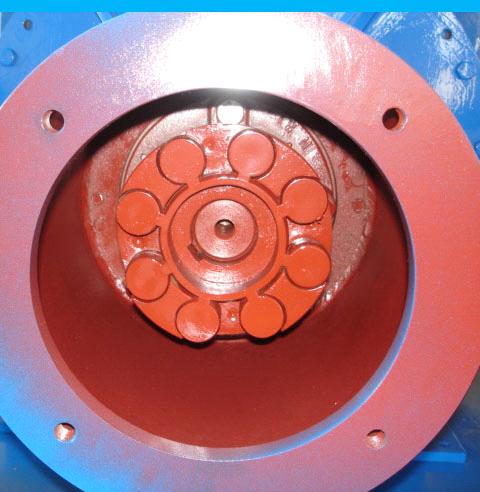

High-Temperature Air-lock Valve

Detailed Product Description

1、      Application
LV series high-temperature air-lock valve is an exclusive rotary air-lock valve designed to block the high-temperature processed air on the basis of the fixed and variable rotary feed machine and it is a new generation of high-tech feed equipment redesigned and improved by our company through introducing and assimilating the advanced technology of the similar foreign products. In addition to own all the functions of the rotary feed machine valve, it also has the priorities of air locking and blocking function for high-temperature air, with which can effectively handle the feed pressure problem. LV series high-temperature air lock valve can be used to transport the nonstick, non-corrosive dry powder or small uniform granular material to those holding devices on various occasions with a temperature less than 550Co.

2、      Working Principle and Structure Features
     The chain-wheel of LV series high-temperature air-lock valve is directed motor-drive to achieve a uniform feed and air lock, i.e. feeding without leaking. The compact valve structure is easy operating, stable functioning and highly reliable with low noise rate. The radial clearance between the chain-wheel fans and the cylinder wall is scientific and rational, which is also adjustable and can be replaced after limit wear. The key components of the cylinder shell, chain- wheel, cover are all made by imported high-quality high temperature resist low- carbon alloys; the high-temperature creep resistance can assure the working precision after a long-term operation. Dynamic configuration selects the imported high-quality direct-driven motor which owns a stable and reliable performance.

3、Models and Main Technical Parameters (See Chart1 )

Model  Spec
Rotor diameter mm
Feed width
mm
Maximum flow
t/h
Matching
Power
kw
Length mm
W x H
mm
LV500x700
Φ500
500x700
150
4
2075
620x750
LV630x800
Φ630
630x800
300
5.5
2754
830x900
LV800x1000
Φ800
800x1000
350
7.5
2950
1050x1100

4、Main components(See chart 1)

No.

Code


Name

Quantity
Remarks

1

Transmission Motor
1


2
LV*x*-01
Connecting wedge kit
1


3
ML *
Cinquefoil flexible coupling
1


4
GB/T1096-1979
Key
1


5
GB/T7810-1995
Bearing
2


6
LV*x*-02
Cover
2


7
LV*x*-03
Gland flange
2


8
LV*x*-04
Over-lengthen hexagonal oil input glib
1


9
LV*x*-05
Oil ring
2


10
LV*x*-06
Back seat
6


11
LV*x*-07
Chain-wheel
1


12
LV*x*-08
Observation hole cover
2


13
LV*x*-09
Shell
1


14
LV*x*-10
Oil input stent
1


15
LV*x*-11
Oil input glib
4


16
LV*x*-12
Shaft shield

1
