Embed Salt bath furnace

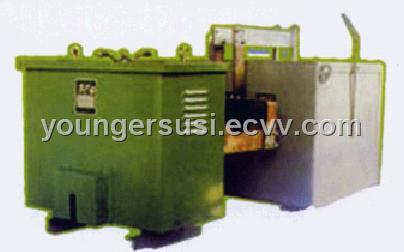

Embed Salt bath furnace

Detailed Product Description

Model			DM-35-6	DM-50-6	DM-75-6	DM-100-6	DM-35-8	DM-50-8	DM-75-8
Rated power KW			35	50	75	100	35	50	75
Power voltage V			380	380	380	380	380	380	380
Electrode voltage and joint			6.69 ～ 18.1 △	11.3 ～ 35.1 parallel connection	13.9 ～ 35.1 △	13.6 ～ 33.1 △	6.69 ～ 18.1 △	11.3 ～ 35.1 parallel connection	13.9 ～ 35.1 △
Rated temperature ℃			650	650	650	650	850	850	850
Phase			3	1	3	3	3	1	3
Salt slot dimention		W	300	350	400	400	250	300	350
		L	350	450	550	800	300	350	450
		D	600	600	650	650	600	600	650
Outside size	L		1360	1410	1506	1756	1256	1310	1406
	W		1116	1168	1216	1261	1066	1118	1194
	H		1243.6	1241		1308.5	1243.5	1241	1208.5
Heating time			≤ 1.5	≤ 1.5	≤ 1.5	≤ 2.0	≤ 2.0	≤ 2.0	≤ 2.0
Empty furnace Consumption rate			≤ 7	≤ 10	≤ 15	≤ 24	≤ 8	≤ 12	≤ 17
Weight kg			1630	1900	2200	2700	1500	1700	2000

Model			DM-100-8	DM-200-8	DM-35-13	DM-50-13	DM-75-13	DM-100-13	DM-150-13
Rated power KW			100	200	35	50	75	100	150
Power voltage V			380	380	380	380	380	380	380
Electrode voltage and joint			13.6 ～ 33.5 △	13.6 ～ 33.5 △	6.69 ～ 18.1 △	11.3 ～ 35.1 parallel connection	13.9 ～ 35.1 △	13.6 ～ 33.5 △	13.6 ～ 33.5 △
Max working temperature ℃			850	850	1300	1300	1300	1300	1300
Phase			3	3	3	1	3	3	3
Bath slot size		W	400	400	200	250	300	350	450
		L	550	600	200	300	350	450	900
		D	650	1200	500	500	500	600	650
Outside size	L		1565	1600	1156	1260	1306	1406	1750
	W		1216	1216	1016	1096	1144	1194	1350
	H		1308.5	1810	1143.5	1141	1143.5	1208.5	1250
Empty furnace heating time			≤ 2.0	≤ 2.5	≤ 4.0	≤ 4.0	≤ 4.0	≤ 4.0	≤ 4.0
Empty furnace consumption power			≤ 24	≤ 48	≤ 10	≤ 15	≤ 20	≤ 30	≤ 45
Weight kg			2200	4000	1200	1470	1600	1900	2500

FOB Price:

USD50000-80000China
