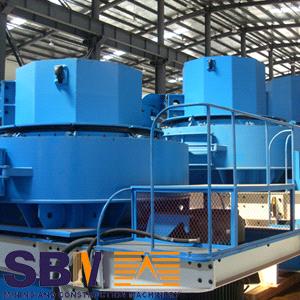

Vertical Crusher, Sand Making Machine

SBM VSI crusher Technological advantages:
SBM VSI crusher incorporates three crushing styles; its feeding style incorporates material on material, materials on iron and falling at sides. Customers can adjust the machines according to their own demand. SBM VSI crusher realizes multiple functions in one machine, which is a big breakthrough in sand making field.

Excellent performance and long service time of SBM VSI crusher:
1. special light oil lubrication systems ensures the temperature to be within 25℃
2. brand new automatic protection device provides the machine with vibrating, oil filtering and warning system;
3. new type oil filtering system ensures the bearings and other transmission system are not abraded and prolong their service time;
4. Choice wearable materials prolong the service time of the machine by 40%. So the cost is lowered by more than 40%.

Technical parameter

Model			B-VSI7611	B-VSI8518	B-VSI9526	B-VSI1140
Capacity (t/h)	Feed both at center and at sides		120-180	200-260	300-380	450-520
	Feed at center		60-90	100-130	150-190	225-260
Max feed size (mm)	Sofe material		＜35	＜40	＜45	＜50
	Hard material		＜30	＜35	＜40	＜45
Rotation speed (r/min)			1700-1890	1520-1690	1360-1510	1180-1310
Power(KW)			110-150	180-220	264-320	400-440
Overall dimension L*W*H (mm)			3700*2150 *2100	4140*2280 *2425	4560*2447 *2778	5000*2700 *3300
Weight (t)			7.8	10.3	16	25.6
Power supply			380V, 50HZ
Vibrating sensor			detect range: 0.1-20mm/s continous and adjustable
Lubrication and hydraulic station		power	2*0.31KW
		Safety assuance	Double oil pumps assure enough oil supply; automatic switch off with no oil stream or hydraulic strength; lower the temperature with cool water in summer; raise the temperature with motor in winter.
		Overall demension L*W*H (mm)		820*520 *1270	820*520 *1270
		Power of oil tank heater	2KW

Note: This specification is just reference, any changes are subject to the products.
