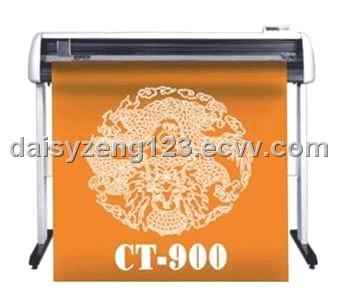

Cutting Plotter CT-900

Detailed Product Description

Model	CT 900
Main Board	16 bit CPU , 1Mb high-speed CACHE Memory
Control Panel	2X8 character LCD display , 13-key light-touch film keyboard
Driving method	Digital DC motor drive
Acceptable Media Width	1000mm
Max.Cutting Area	900mm
Max.Cutting Speed	260mm/s
Max.Cutting Length	50000mm
Max.Cutting Thickness	1mm
Blade Force	0 to 500(digital adjustment)
Mechanical Resolution	0.025mm
Repeatablity	＜±0.1mm（3m）
Blade Type	Sweden professional SANDWIK alloy –steel blade
Pen Type	All type of 1.14 water-paint ,oil-paint ,ball-paint ,and poster drawing pen
Command	HPGL, DMPL
Interface	RS232C/USB1.1
Power Supply	(AC220V~110V) ± 10%，50Hz~60Hz
Power Consumption	＜120VA
Interface Software	Wentai Software
Operating Temperature	5 to 40 °C (41 to 104 °F )
Operating humidity	35% to 80% ( non-condensing )
External Dimension(mm)	1300×375×460
Weight	40kg

Other Price Terms:

T/T OR WESTERN UNION
