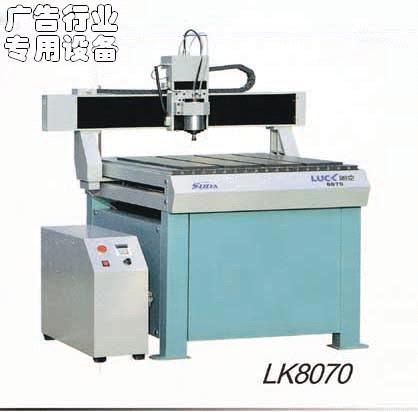

SUDA LUCK cnc engraver LK8070

Detailed Product Description

Stong functions,easy operation,sturdy.durable,eliable performance,reasonable pride,multi-functions,wide application;can beused to process any woody products,applicable to processing,advertising sign plate,acrylic cutting etc.in high efficiency,Any metal or non-metal material can be prcessed,for example,iron, copper,aluminum,plastic plates and wood,etc.

Technical Index	LK8070	LK1212	LK1218	LK1325
Working Area	800×700×90㎜	1200×1200×90 mm	1200×1800×90mm	1300×2500×90 mm
Motion Speed	6000~12000㎜/mim	6000~12000㎜/mim	6000~12000㎜/mim	6000~12000㎜/mim
Resolution	0.01㎜/step	0.01㎜/step	0.01㎜/step	0.01㎜/step
Rotation Speed of Spindle	24000RPM	24000 RPM	24000 RPM	24000 RPM
Power of Spindle	1500w	1500w	1500w	1500w
Bit Diameter	Φ3.175㎜ orΦ6㎜	Φ3.175㎜orΦ6㎜	Φ3.175㎜orΦ6㎜	Φ3.175㎜orΦ6㎜
Dictate Format	HPGL, G code	HPGL, G code	HPGL, G code	HPGL, G code
Power consumption	1500W	1500W	1500W	1500W
Power supply	AC 220V±10% 50-60 Hz	AC 220V±10% 50-60 Hz	AC 220V±10% 50-60 Hz	AC 220V±10% 50-60 Hz

performance：
1、DSP controlling system, can support high traveling speed of 6~12m/min
2、national advanced embedded guiding track, double bearings positioning system, much higher precision
3、high precision single nut Rolling-ball Screw from Germany
4、1.5kw Inverter-driven water-cooling Spindle Motor
5、 independent control cabinet, convenient and safty when operating
6、own function of restoring from power off
