CHONGQING QIYUAN MOTORCYCLE INDUSTRIAL CO.,LTD

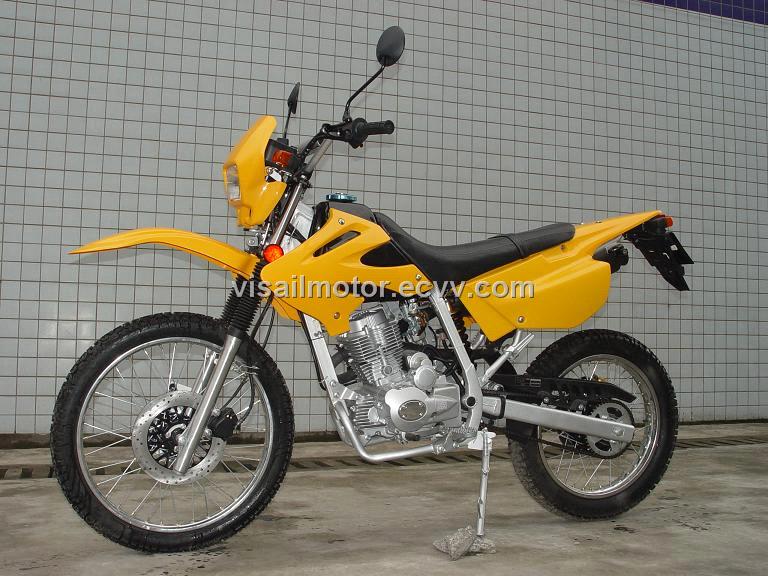

SELL NEW DESIGN DIRT BIKE(S200GY-9)

SELL NEW DESIGN DIRT BIKE(S200GY-9)

SELL NEW DESIGN DIRT BIKE(S200GY-9)

Detailed Product Description

Parameter of Engine  Parameter of cycle
Engine Model:  200CC,Single-Cylinder,Air-Cooling,4-Stroke Dimension(L*W*H)(mm):  2180*810*1200
Bore × Stroke(mm):   63.5*62 Wheel Base(mm):  1375
Ignition:   C.D.I. Dry Weight(kg) 160
Lubrication:   Splash Gross Weight(kg):  141
Rated. Power(kw/r/min):  10.5/8000±500 Transmission Type:  Chain
Max. Torque(N.m/r/min):   14.5/6500±500 Tyre and Rim :  FR:2.75-21     RR:4.10-18
Impression Ratio:  9.2:1 Brake Style:  Front & Rear Disc Brake
Starting Type:  Electric & Kick Start Displacement(ml):  196
Max. Speed(km/h):  ≥90 Oiltank Capacity(L):  8
Clutch:   Manual Clutch Max. Load(kg):  150
　 Container Capacity:  20GP:30       40GP: 64     40HQ: 96
Engine Optional 1) 125CC,150CC Engine Available Cycle Optional 1) With Remote Control
2) 200CC Engine With Balance Shaft 2) Up-Side-Down Front Shock Absorbers
