CHONGQING QIYUAN MOTORCYCLE INDUSTRIAL CO.,LTD

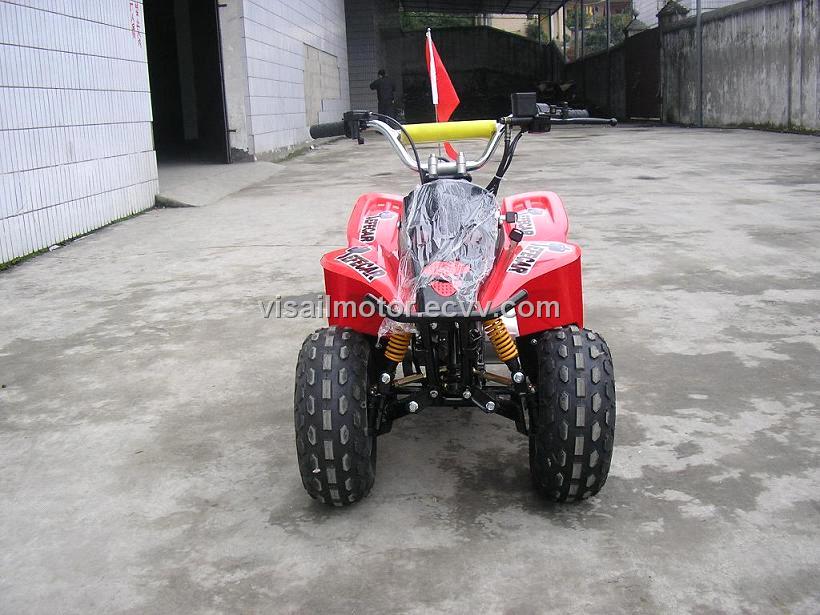

SELL 50CC ATV(VS50ST-7)

Detailed Product Description

Parameter of Engine  Parameter of cycle
Engine Model:  50CC,Single-Cylinder,Air-Cooling,4-Stroke Dimension(L*W*H)(mm):  1080*640*750
Bore × Stroke(mm):   39*41.4 Wheel Base(mm):  680
Ignition:   C.D.I. Dry Weight(kg) 100
Lubrication:   Splash Gross Weight(kg):  90
Rated. Power(kw/r/min):  2.0/7500±500 Transmission Type:  Chain
Max. Torque(N.m/r/min):   2.5/6000±500 Tyre and Rim :  FR:145/70-6       RR:145/70-6
Impression Ratio:  8.8:1 Brake Style:  Rear Disc Brake
Starting Type:  Electric Start Displacement(ml):  49
Max. Speed(km/h):  ≥30 Oiltank Capacity(L):  3
Clutch:   Automatic Clutch Max. Load(kg):  110
  Container Capacity:  20GP:48      40GP: 102    40HQ:136
  Cycle Optional 1) With Remote Control
  2) Chrome Rim
  3) Chrome Bump
