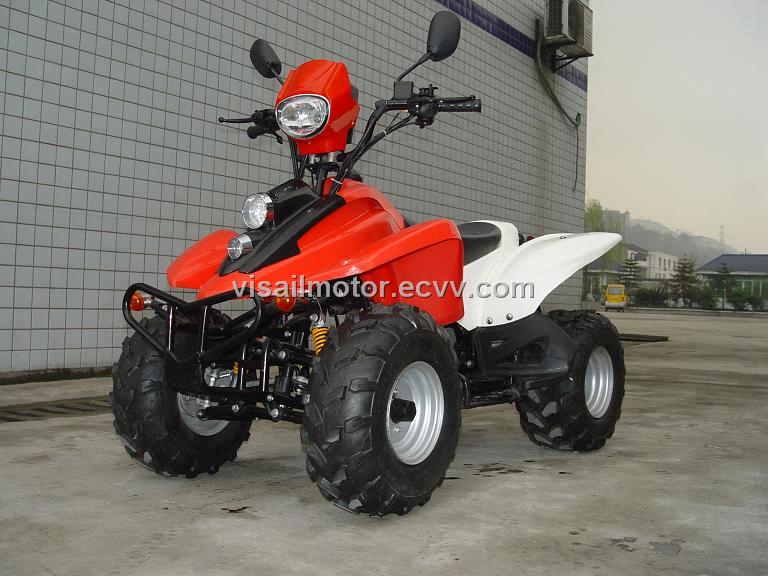

SELL NEW DESIGN MINI ATV(VS50ST-10)

Detailed Product Description

Parameter of Engine		Parameter of cycle
Engine Model:	70CC,Single-Cylinder,Air-Cooling,4-Stroke	*Dimension(LWH)(mm):*	16008901040
Bore × Stroke(mm):	47*41.4	Wheel Base(mm):	1040
Ignition:	C.D.I.	Dry Weight(kg)	110
Lubrication:	Splash	Gross Weight(kg):	100
Rated. Power(kw/r/min):	3.4/7500±500	Transmission Type:	Chain
Max. Torque(N.m/r/min):	4.5/6000±500	Tyre and Rim :	FR:197-8 RR:189.5-8
Impression Ratio:	8.8:1	Brake Style:	Front Drum & Rear Disc Brake
Starting Type:	Electric Start	Displacement(ml):	72
Max. Speed(km/h):	≥35	Oiltank Capacity(L):	2.6
Clutch:	Automatic Clutch	Max. Load(kg):	110
		Container Capacity:	20GP:30 40GP:66 40HQ:66
		Cycle Optional	1) With Remote Control
		Cycle Optional	2) Chrome Rim
