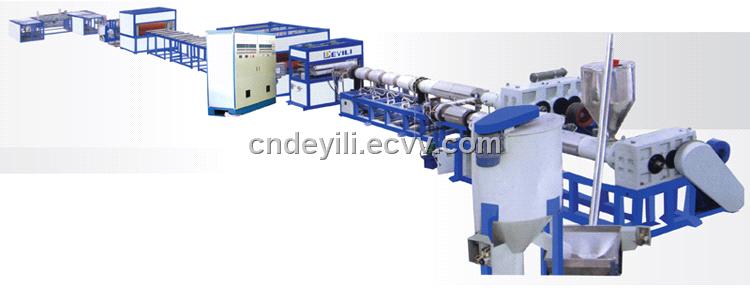

XPS Foamed Sheet Extruder Plastic Machine

XPS foamed board production line is one of our new hi-tech products. XPS foamed board is one kind of good insulating materials with continuous even surface and beehive structure. It has superior advantages of good heat preservation, heat insulation, water-proof and high compression resistance. XPS board has been widely used in the fields of heating-preservation and insulation for roof and out-wall, low temperature storage facilities, surface and undersurface of roads. As an ideal insulating and damp-proof material, it has wide market prospect.

Main technical parameter:
Model: XPS-165/200
Connection model: Single/SingleLengthways connection
Screw diameter and L/D ratio: 165-30DSingle screw 200-30DSingle screw
Width(mm): 600 900
Thickness(mm): 20-100 20-60
Capacity: 240-300kg/h
Power: 200kw, 160kw

Model: XPS-150/135
Connection model: Single/SingleLengthways connection
Screw diameter and L/D ratio: 135-30DSingle screw 150-33DSingle screw
Width(mm): 600 900 1200
Thickness(mm): 20-100 20-60 20-40
Capacity: 120-180kg/h
Power: 90kw, 75kw

Model: XPS-90/120
Connection model: Single/SingleLengthways connection
Screw diameter and L/D ratio: 90-30DSingle screw 120-33DSingle screw
Width(mm): 600
Thickness(mm): 20-60
Capacity: 70-90kg/h
Power: 45kw, 37kw
