Qingdao Deyili Plastic Machinery Co., Ltd.

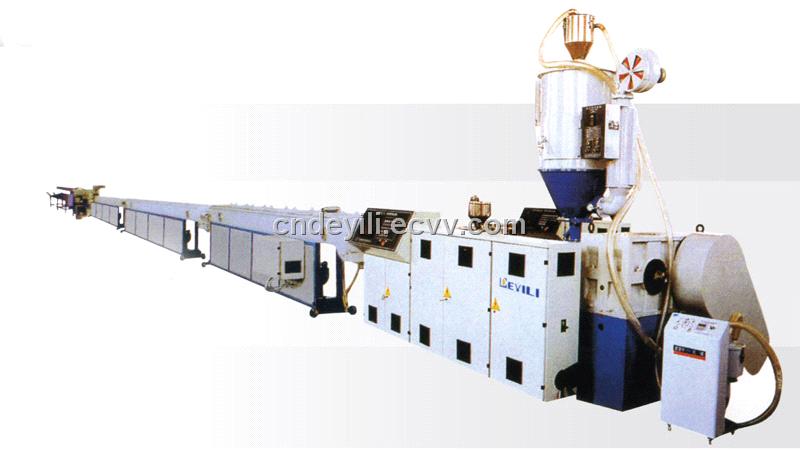

PPR Pipe Extruding Plastic Production Line

Detailed Product Description

Features of PPR Pipe Extruding Plastic Production Line:
1) Based on latest German technology, designed for extrusion of PPR pipes. The quality of pipes is tested to be in compliance with the ISO-DIS 15874-22-98 standards
2) Specially designed high efficient extruder for PPR: Equipped with imported reducer, grooved feed bush and BM screw which allow great output, lower melting temperature and lower energy consumption
3) Mould and die co-extrusion spiral die assures adequate material flow and more even internal pressure distribution and a static mixing system for option
4) Stable calibrator: Vacuum calibration and optimum cooling result due to special design and multi-section water membrane cooling which meets the requirements of thicker waft pipe or larger diameter pipe extrusion with high speed
5) Quality component reducer of extruder, DC speed regulator, frequency converter, PLC control system and jet printer are all imported

Main technical parameter:
SJPPG_65/30-63
Dia range: 20-63mm
Screw and L/D: 65 30: 1 30 25: 1
Output: 120Kg/h
Speed: 15m/min
Power: 80kW
Capacity: 350km per year
Overal dimension: 35m*2.5m*2.8m
SJPPG_90/30-160
Dia range: 75-160mm
Screw and L/D:  90 30: 1 30 25: 1
Output: 220Kg/h
Speed: 4m/min
Power: 125Kw
Capacity: 150km per year
Overal dimension: 28m*2.5m*2.8m
Other Price Terms:L/C
