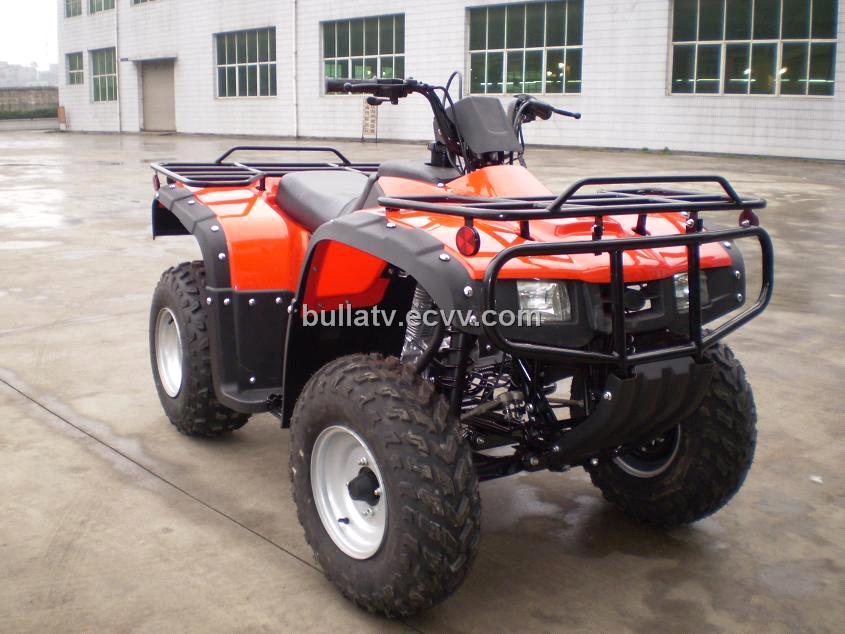

Sell 250CC ATV, Farm Style, Shaft Drive(SJ250ST-2B)

Detailed Product Description

Model:SJ250ST-2B

Main Feature:250cc,manual clutch,electric start,acyclic gear,inner reverse gear,shaft drive,single rocking arm,front&rear drum brake,with fan.

Specifications:
Engine type:single cylinder,air cooling,4 stroke
Clutch:manual wet multi-plate
Ignition method:C.D.I.
Start method:electric
Transmission:shaft
Displacement(ml):250
Bore*stroke(mm):67*65
Compression ratio:9.2:1
Rated power(kw/r/min):12/6500±500
Maximum torque(N.m/r/min):16/5500±500
Lubrication:splash
Gear:4 gear with reverse gear
Dimensions(L*W*H)(mm):1940*1050*1150
Wheel base(mm):1160
Seat height(mm):835
Min.turning radius(mm):2900
Min.ground clearance(mm):150
Rider capacity:2
Brake:front&rear drum
Front wheel:23*7-10
Rear wheel:22*10-10
Fuel tank capacity(L):12.6
Engine oil capacity(ml):900
Climbing capacity:≥20
Max.load(kg):165
Max.speed(kw/h):50
Net weight(kg):200
Gross weight(kg):230
