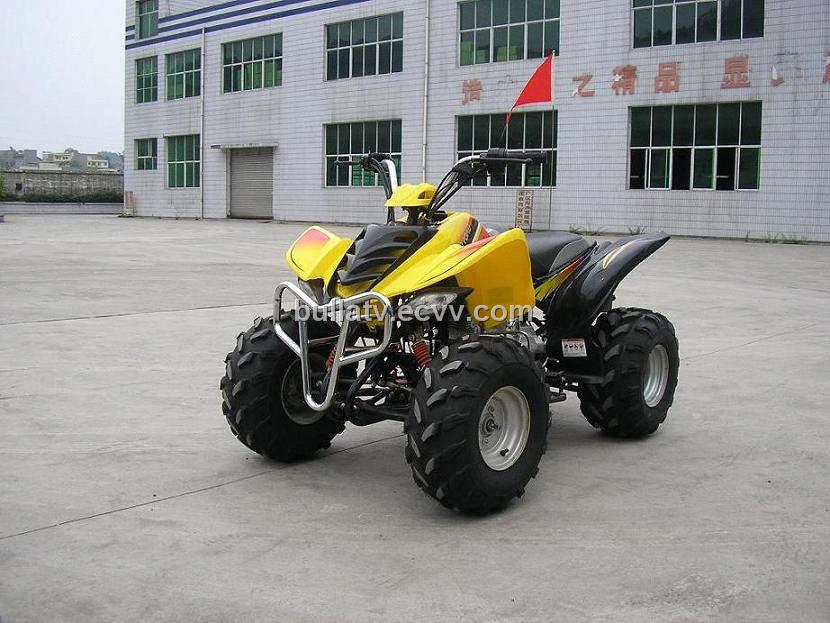

Sell 125CC/150CC/200CC/250CC ATV (SJ150ST-C)

Detailed Product Description

Model:SJ150ST-C

Main Feature:150cc,4 stroke,manual clutch,electric start,inner reverse gear,acyclic gear,chain drive,single rocking arm,front drum & rear disc brake,lambdoidal shape tyre.

Specifications:
Engine type:single cylinder,air cooling,4 stroke
Clutch:manual wet multi-plate
Ignition method:C.D.I.
Start method:electric
Transmission:chain
Displacement(ml):149
Bore*stroke(mm):62*49.5
Compression ratio:9.2:1
Rated power(kw/r/min):8.2/8500±500
Maximum torque(N.m/r/min):9.5/7000±500
Lubrication:splash
Gear:4 forward gear with reverse gear
Dimensions(L*W*H)(mm):1480*890*910
Wheel base(mm):985
Seat height(mm):850
Min.turning radius(mm):2000
Min.ground clearance(mm):130
Brake:front drum&rear disc
Front wheel:19*7-8
Rear wheel:18*9.5-8
Fuel tank capacity(L):5
Engine oil capacity(ml):900
Climbing capacity:20
Max.load(kg):145
Max.speed(kw/h):45
Net weight(kg):145
Gross weight(kg):155
