Chongqing SAJAO Mechanical & Electrical Co., Ltd(Motorcycle,ATV,Dirt Bike,Engine)

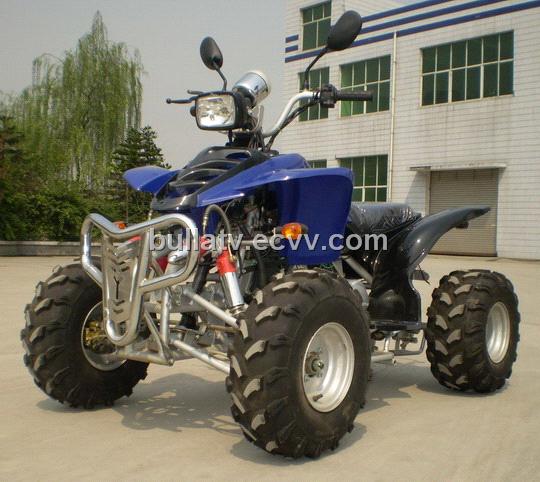

Sell 150CC EEC ATV/QUADS (SJ150ST)

Detailed Product Description

MODEL:SJ150ST (EEC)

Main Feature:150cc,GY6 CVT,electric & kick start,chain drive,dual rocking arm,front & rear disc brake,racing tyre,meter in both in international and England stand,turning lights,horn,rear view mirror,steering lock.

Specifications:
Engine type:single cylinder,air cooling,4 stroke
Clutch:CVT
Ignition method:C.D.I.
Start method:electric&kick
Transmission:chain
Displacement(ml):149
Bore*stroke(mm):57*57.8
Compression ratio:9.2:1
Rated power(kw/r/min):6/7000±500
Maximum torque(N.m/r/min):7.6/6000±500
Lubrication:splash
Gear:1 forward gear with reverse gear
Dimensions(L*W*H)(mm):1700*1010*1210
Wheel base(mm):1175
Seat height(mm):700
Min.turning radius(mm):2400
Min.ground clearance(mm):110
Rider capacity:2
Brake:front&rear disc
Front wheel:19*7-8
Rear wheel:18*9.5-8
Fuel tank capacity(L):7.6
Engine oil capacity(ml):900
Climbing capacity:20
Max.load(kg):130
Max.speed(kw/h):45
Net weight(kg):140
Gross weight(kg):15
