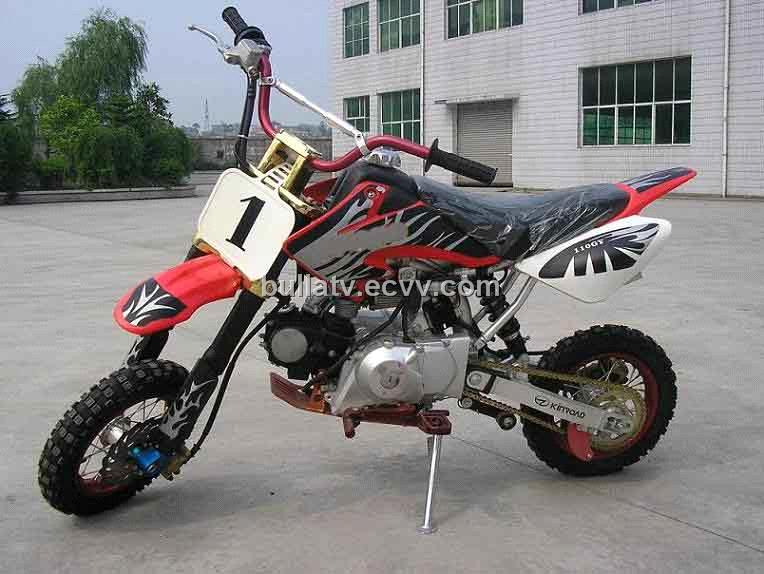

Sell 110CC Pit Bike (SJ110PY-5A)

Detailed Product Description

MODEL:SJ110PY-5A

Main Feature:110cc, electric & kick start, up-side-down front shock absorbers, front & rear disc brake

Specifications:
Engine type:single cylinder,air cooling,4 stroke
Clutch:automatic
Ignition method:C.D.I.
Start method:electric & kick start
Transmission:chain
Displacement(ml):107
Bore*stroke(mm):52.4*49.5
Compression ratio:9.0:1
Rated power(kw/r/min):5/7500±500
Maximum torque(N.m/r/min):6.8/5500±500
Lubrication:splash
Gear:4
Dimensions(L*W*H)(mm):1430*760*950
Wheel base(mm):1050
Seat height(mm):660
Min.turning radius(mm):1600
Min.ground clearance(mm):120
Brake:front & rear disc brake
Front wheel:2.50-10
Rear wheel:2.50-10
Fuel tank capacity(L):3
Engine oil capacity(ml):800
Climbing capacity:18
Max.load(kg):80
Max.speed(kw/h):50
Net weight(kg):85
Gross weight(kg):95
