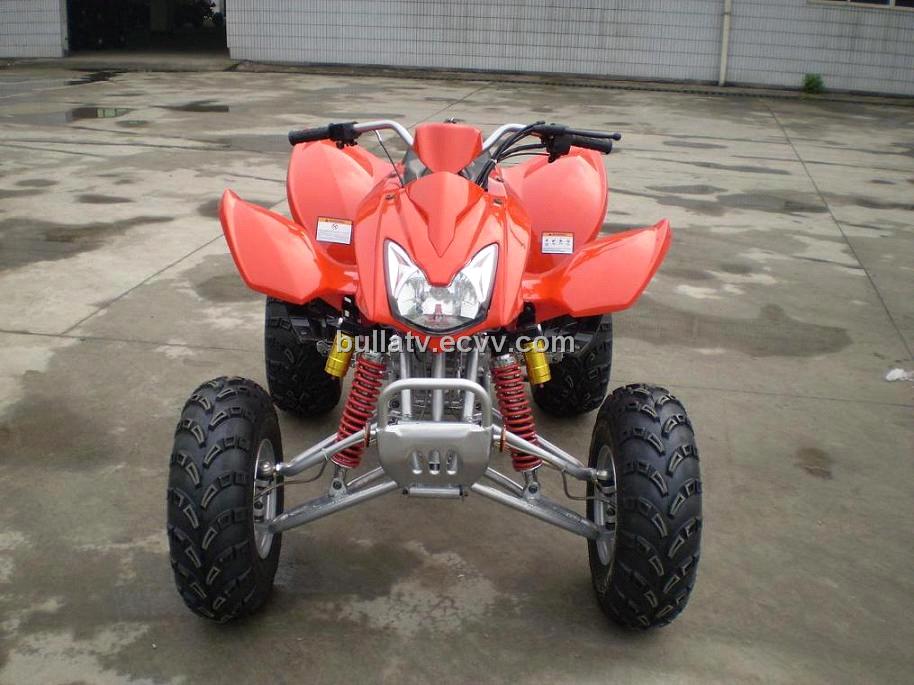

Sell 200cc/250cc/ 300cc Gas ATV (SJ250ST-6)

Detailed Product Description

Model:SJ250ST-6

Main Feature: 250cc,4 stroke, single cylinder, air cooling, manual clutch, electric start, inner reverse gear, acyclic gear, chain drive, dual rocking arm, attached piggy bag front shock, adjustable absorber R. R, al-alloy muffler, al-alloy rear bridge, front&rear disc brake, lambdoidal shape higher and wider tyre.

Specifications:
Engine type: Single cylinder, air cooling, 4 stroke
Clutch: Manual wet multi-plate
Ignition method: C.D.I.
Start method: Electric
Transmission: Chain
Bore*stroke(mm): 67*65
Compression ratio: 9.2: 1
Rated power(kw/r/min): 12/6500±500
Maximum torque(N. M/r/min): 17.5/5500±500
Lubrication: Splash
Gear: 4 forward gear with reverse gear
Dimensions(L*W*H)(mm): 1850*1110*1100
Wheel base(mm): 1235
Seat height(mm): 800
Min. Turning radius(mm): 2600
Min. Ground clearance(mm): 130
Rider capacity: 2
Brake: Front&rear disc
Front wheel: 23*7-10
Rear wheel: 22*10-10
Fuel tank capacity(L): 11.4
Engine oil capacity(ml): 900
Climbing capacity:30
Max. Load(kg): 150
Max. Speed(kw/h): 55
Net weight(kg): 220
Gross weight(kg): 250
