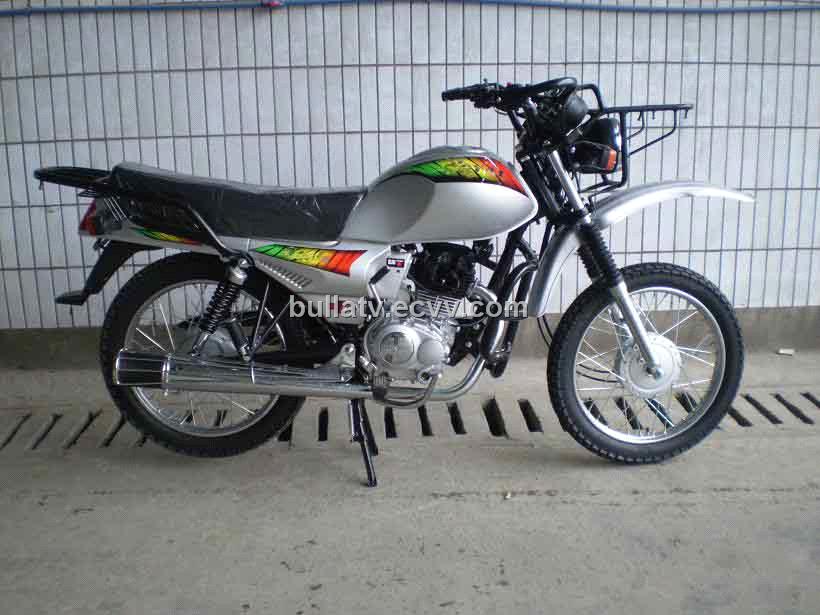

Sell 125cc/150cc/200cc Dirt Bike (SJ125GY-5)

Detailed Product Description

Model:SJ125GY-5

Main Feature: 125cc,electric & kick start, front & rear drum brake, spoke wheel, round light and meter, with front & rear carrier and bumper

Specifications:
Engine type: Single cylinder, air cooling, 4 stroke
Clutch method: Manual clutch
Ignition method: C. D. I.
Start method: Electric&kick start
Transmission: Chain
Displacement(ml): 124
Bore*stroke(mm): 56.5*49.5
Compression ratio: 9.2: 1
Rated power(kw/r/min): 7.2/8500±500
Maximum torque(N. M/r/min): 8.5/7000±500
Lubrication: Splash
Gear: 5
Dimensions(L*W*H)(mm): 2050*930*1115
Wheel base(mm): 1290
Seat height(mm): 790
Min. Turning radius(mm): 2100
Min. Ground clearance(mm): 200
Rider capacity: 2
Brake: Front&rear drum brake
Front wheel: 2.75-18
Rear wheel: 3.00-18
Fuel tank capacity(L): 7
Engine oil capacity(ml): 800
Climbing capacity:15
Max. Load(kg): 150
Max. Speed(kw/h): 85
Net weight(kg): 114
Gross weight(kg): 134
