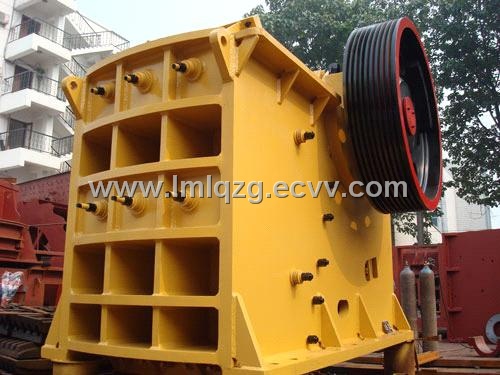

BREAK-DAY specializes in producing jaw crusher which is widely used in mining, quarry and material handling. Our company has been a manufacturer and exporter of crushers for decades.
We have various models of jaw crusher. The jaw crusher is ideally suitable for primary and secondary crushing with low power consumption and easy maintenance. Every feature of this machine has been carefully designed to provide superior quality and performance. Jaw crusher is widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc.
Jaw crusher is recommended by leading consultants in this field and is used by hundreds of customers all over the world.
Working Principle of Jaw Crusher:
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products such as stone after crushing will be discharged from the outlet.
Characteristics of Jaw Crusher:
High ratio of crushing, homogeneous final grain size, simple structure, reliable working condition, easy maintenance, low operating cost.
Technical Data:
| Model |
Size of Feeder Opening (mm) |
Max. Feeding Size (mm) |
Capacity (t/h) |
Motor Power (KW) |
Overall Dimensions (mm) |
Weight (t) |
| PE150×250 |
150×250 |
125 |
1-3 |
5.5 |
896×745×935 |
0.8 |
| PE250×400 |
250×400 |
200 |
5-20 |
15 |
1430×1310×1340 |
2.8 |
| PE400×600 |
400×600 |
350 |
15-60 |
30 |
1700×1732×1653 |
6.5 |
| PE500×750 |
500×750 |
425 |
50-100 |
55 |
2035×1921×2000 |
10.3 |
| PE600×900 |
600×900 |
480 |
60-130 |
75 |
2290×2206×2370 |
15.5 |
| PE750×1060 |
750×1060 |
630 |
80-180 |
90 |
2655×2302×3110 |
28 |
| PE900×1200 |
900×1200 |
750 |
140-260 |
110 |
3789×2826×3025 |
52 |
| PEX250×750 |
250×750 |
210 |
10-40 |
22 |
1667×1545×1020 |
5 |
| PEX250×1000 |
250×1000 |
210 |
15-50 |
30 |
1550×1964×1380 |
6.5 |
| PEX250×1200 |
250×1200 |
210 |
20-60 |
37 |
2192×1900×1950 |
7.7 |
Notice: Any change of Jaw Crushers technical data shall not be advised additionally.
Impact Crusher is mainly used to crush many kinds of large, medium, small materials such as rock or stone whose side length is less than 500mm, and compression resistance should not be more than 350Mpa. The impact crusher is widely used in hydroelectricity, highway, artificial rock, stone and sand, building material, etc.
Working Principle of Impact Crusher:
When the impact crusher works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers. When the materials get into the ar which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process wont stop till the material are crushed to the required size and then discharged from outlet.
Technical Data:
| Model |
Size of rotor (mm) |
Feed opening (mm) |
Max. feed size (mm) |
Handling capacity (t/h) |
Power of motor (kw) |
Weight (t) |
| PF1010 |
Φ1000×1050 |
400×1080 |
350 |
50-80 |
75 |
12 |
| PF1210 |
Φ1250×1050 |
400×1080 |
350 |
70-130 |
110 |
14 |
| PF1214 |
Φ1250×1400 |
400×1430 |
350 |
90-180 |
132 |
18 |
| PF1315 |
Φ1320×1500 |
860×1520 |
500 |
120-250 |
200 |
19 |
| PF1320 |
Φ1320×2000 |
860×2030 |
500 |
160-350 |
260 |
24 |
Notice: Any change of Impact Crusher technical data shall not be advised additionally
