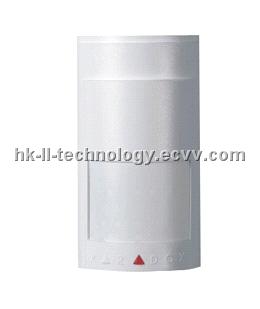

PIR Motion Detector (L&L-556B)

PIR Detector (L&L-556B)
Technical specification:

Sensor: Dual rectangular element, low noise, high sensitivity
Processing: Auto Pulse, two levels, temperature compensation
Startup: 35 seconds
Detection speed: 0.2m-7m/sec (0.6-23ft/sec)
Power input: 12Vdc, 31mA maximum
Operating temperature: -10 to +50 degree (14 F to 122 F degree)
Lens: 2nd generation Fresnel lens
Coverage: 40(12m) *100 degree (standard lens)
Zone: 22
Mounting height: 7-9ft(2m-2.7m)
Alarm indication: Green LED, constant light for 3 seconds
Alarm output: N. C. 28Vdc/0.15A
Anti-tamper switch: N. C. 28Vdc/0.15Amax
Humidity: 95% maximun
Weight: 80G(2.8OZ)

1: Patented auto pluse singal processing with two programmable levels
2: Improved RFI rejection with metal shield
3: Automatic temperature compensation
4: High density reflow SMD design
5: Wide angle standard lens

FOB Price:	USD4-6shenzhen
Other Price Terms:	negociation!
