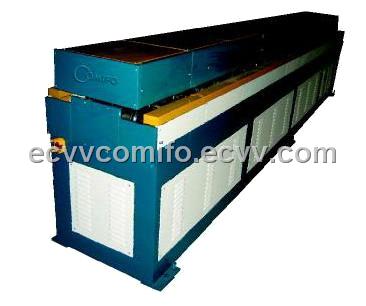

lOW COST GDF integral flange forming machine

GDF flange is widely applicated in europe as a kind of quick installation duct flange. it shards common advantages with tdf flange-well seal, free of jointing and riveting. gdf flange is integral with duct, with 4bolts and special duct clamp, it makes the connection of ducts much easier.

GDF  flange forming machine is easy to operate, with high efficiency and reliable quality.



l        dimension：length*width*height: 5150*630*1060mm



l        data：

1)       model no.: gdf-t20

2)       max coil thickness： 0.8mm

3)       material：galvanized steel

4)       material intensity：≤235mpa

5)       speed：8m/min

6)       roller material: 40cr

7)       station: 21sets of roller

8)       total power： 5.5kw/380v/50hz/3p
