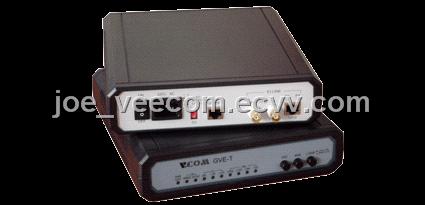

Sell E1 to ethernet converter GVE-T

Detailed Product Description

E1 to ethernet converter.
E1 to fast ethernet converter.
GVE-T, E1 to Ethernet(10Base-T),Both Framed(N*64K) and Unframed(2048K),75/120ohm

Ethernet Features

LAN Table:	10000, automatic learning and
	updating
Filtering and Forwarding:	30000 frames/second
Buffer size:	64M
Throughput Delay:	1 frame
VLAN:	VLAN has 802.1Q

LAN Features

Standard:	conform with IEE802.3/Ethernet
Work mode:	full duplex/ half duplex
Data speed:	10Mbps
Physical interface:	10 BaseT(UTP); shield RJ-45

WAN (E1/G.703) Features

Line transmission speed:	N*64Kbps(N=1--31), 2048Kbps
Line coding options:	HDB3
Format of line frame:	G.703(framed/unframed)
Line interface :	impedance120ohm,RJ45 impedance 75ohm,BNC
Transmission Features:	conform with G.703

Data port Features

Speed of data transmission:	N*64Kbps(N=1--31)
Transmission mode:	synchronization
Clock:	master clock; slave-clock
	line G.703 clock
Testing mode:	local analogy loop back
	remote digital loop back
Power supply:	220VAC±10% 50Hz
	48VDC±10% 50Hz
Power consumption:	5W
Volume:	225mm×145mm×40mm
	9”L5.8”W1.6H
Temperature:	0^oC ~40^oC
Humidity:	0~95%

E1 to fast ethernet converter.E1 to ethernet converter.
E1 to fast ethernet converter.E1 to ethernet converter.
E1 to fast ethernet converter.E1 to ethernet converter.
E1 to fast ethernet converter.E1 to ethernet converter.
E1 to fast ethernet converter.E1 to ethernet converter.
E1 to fast ethernet converter.E1 to ethernet converter.

E1 to ethernet converter.
E1 to fast ethernet converter.
GVE-T, E1 to Ethernet(10Base-T),Both Framed(N*64K) and Unframed(2048K),75/120ohm
