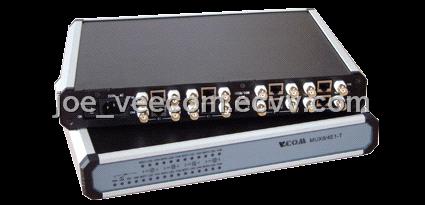

Sell Ethernet to E1 Converter MUX2/4/8E1-T

Detailed Product Description

Ethernet to E1 converter.
Ethernet to 2 E1 converter.
Ethernet to 4 E1 converter.
Ethernet to 8 E1 converter.
MUX2/4/8E1-T

Ethernet  Specialties
LAN MAC:
automatically learning and updating
Buffer:
transmitting queue:1M*16bit;
receiving queue:1M*16bit
VLAN:
802.1Q VLAN
LAN Specialties
Standard:
Conform with IEE802.3u/Ethernet
Work Mode:
full duplex/ half duplex self-adaptive, or be chosen manually
Data Speed:
10M/100Mbps, or be chosen manually
Physical Interface:
10M/100Mbps BaseT (UTP); shield RJ-45
WAN(E1/G.703) Specialties
E1 line speed:
2048kbps (transparent E1 channel) ±50PPM
E1 line code:
HDB3
E1 lines frame format:
G.703(unframed)
Data Transmission Speed:
1984kbps
E1 Output Difference:
<0.05UI
Transmission Lines:
Eight/Four E1 lines
Highest Data Transmission Speed:
15.872/7.936Mbps
Eight E1 Lines Transmission Time Delay Difference:
Permission <16ms
Transmission Mode:
synchronous full duplex;HDLC(High Level data Link Control)
Line Interface:
impedance 120ohm, RJ 45

impedance 75ohm, BNC
Transmission Specialties:
conforming with G.703
Clock:
slave clock (line G.703 clock)
Power Supply:
AC 220V±10%, 50Hz; DC 48V
Power consumption:
5W
Volume:
340mm*250mm*55mm

1.5  Working Conditions
Working Temperature:
0℃ ~ 50℃
Storage Temperature:
-40℃ ~ +70℃
Relative Humidity:
95 %
