Sell G.SHDSL modem MSDSL

Detailed Product Description

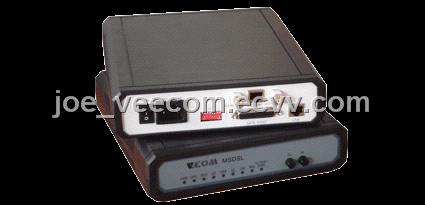

G.SHDSL mdoem.

SHDSL modem

MSDSL

Line interface

Fully conforming to standard of YDN 056-1997

Transmission rate:	N*64Kbps+8Kbps(N=3~36)
Code:	PAM16
Line impedance:	135ohm
Signal electrical level:	+13.5±0.5dbm
Line wire interface:	a pair of passive twisted-line, RJ45
Code error rate:	≤10^-9
Transmission distance without linkup:	3.5~9.7Km(0.4~0.8mm wire size)

Data interface 1 (E1 interface)(For option)

Transmission rate:	N * 64Kbps(N=1~32)
Line code:	HDB3
Line impedance:	75ohm/120ohm
Interface standard:	conform with CCITT G.703 standard

Data interface 2 (V.35)

Transmission rate:	N *64Kbps(N=3~36);
Work mode:	DCE

Ethernet features (for option)

Standard: comply with IEE802.3u/Ethernet

Working mode: full/half duplex, or selected manually

Data rate: 10M/100Mbps self-adaptive.

Physical interface: 10M/100Mbps BaseT(UTP); shielded RJ-45

LAN address table: learning and updating automatically

Buffer: sending queue: 1M*16bit; receiving queue: 1M*16bit

VLAN: comply with 802.1Q VLAN

Work circumstances

Power supply:	220VAC±10%,50Hz;48VDC(optional)
Power consumption:	<5W
Volume:	225mm145mm40mm 9"L5.8"W1.6"H
	225mm145mm40mm 9"L5.8"W1.6"H
Temperature: Relative humidity:	0~ +40 0~95%
