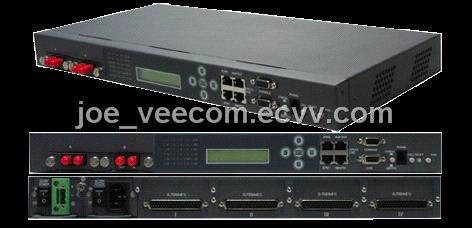

Sell PDH fiber optic multiplexer DHODT-E+

Detailed Product Description

PDH fiber optic multiplexer.

LCD PDH fiber optic multiplexer.

LCD PDH fiber optic multiplexer.
Modular integrated LCD PDH fiber optic multiplexer with SNMP.

DHODT-E+

>> Electrical Interface

4E1 Interface Card

Dual V.35 Interface Card

FXO/FXS Voice Channel Interface Card

RS232 Interface Cards (4xRS232

RS422/RS485 Interface Card (4xRS422/485)

Ethernet Port with Line Rate 100Mpbs

>> Optical Interface

Optical Source:	LD
Output Power:	>= -9dBm (dual fiber)
Receiver Type:	PINFET
Receiver Sensitivity:	<= -35dBm (BER<= 10-11) (dual fiber)
Type of Optical Connectors:	FC/SC
Focus Wavelength:	1310/1550 nm
Optional Transmitting Distance:	0~40 km (40~120 km, to be customized)

Dual optical interface module is supplied that supports hot swap. No error code occurs in the case of optical interface switching.

>>Power Supply

Input Voltage:	AC 220 V / DC-48 V
Voltage Fluctuation:	165 VAC~265 VAC or -36 VDC~-72 VDC
Power Consumption:	<=10~40 W

Subject to certain change for configuration of different interfaces

>>Physical Parameters

Standalone Type (19"):

Dimension:	440 mm(W) x 56.5 mm(H) x220 mm(D)
Weight:	< 6.0 kg
Rack Type:	EIA 19" Rack

PDH fiber optic multiplexer.
LCD PDH fiber optic multiplexer.
Modular integrated LCD PDH fiber optic multiplexer with SNMP.PDH fiber optic multiplexer.
LCD PDH fiber optic multiplexer.
Modular integrated LCD PDH fiber optic multiplexer with SNMP.PDH fiber optic multiplexer.
LCD PDH fiber optic multiplexer.
Modular integrated LCD PDH fiber optic multiplexer with SNMP.PDH fiber optic multiplexer.
LCD PDH fiber optic multiplexer.
Modular integrated LCD PDH fiber optic multiplexer with SNMP
