Detailed Product Description

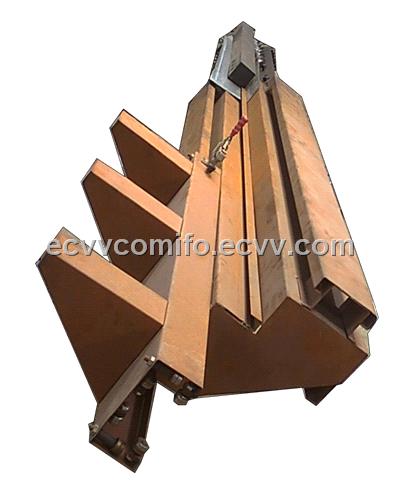

comifo duct zipper allows you to produce the highestly duct work faster, easier, and more profitably than ever before. this new technology and engineering thave taken the seaming process from the traditional three steps down to only one.
traditional methods rollform the receiver lock, than the rollform the flange, and finally connect the two and close the seam. comifo duct zipper does all this in one smooth and simple operation! the material handling system supports the blanks and moves through the machine along with the duct work. after one seam is completed, operator simplely puts the duct crosswise onto the material guidance system and slodes it back to the entry point. it’s that simple,easy and more often than not saves a second operator!
this machine is suitable for transver flange duct and c cleat joint duct manufacture. combines with comifo duct manufacture compact line iii, hydraulic folder; production efficiency can be greatly improved.
l dimension：length*width*height
5000*1125*1160mm
l data：
1) model no.: h-10
2) coil thickness：0.5-1.0 mm
3) material： galvanized steel
4) minimum duct size: 100*100mm
5) speed：7m/min
6) power: 1.5kw/380v/50hz
configuration
1) machine
no. of roller：10-set
roller material：40cr
2) shield on the machine： 1set
all the running parts of the machine will be covered by the shields ensure operators’ safety.
COMIFO can design the machine according to customers’ requirement.
Based on high technicial support and the united team with more than ten years manufacturing and installng experience, we provide our customers with continuous service including selling, installing, and one year warranty of after sale service.
If you need any further information, pls feel free to contact us.
