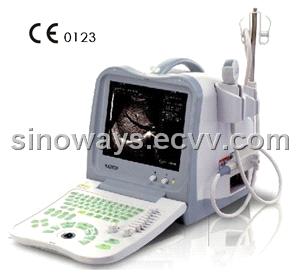

portable digital ultrasound scanner KX2600

Technical Data
1. Scanning mode: linear array scanning, convex array scanning
2. Nominal frequency of the probe: 3.5MHz/5.0 MHz /6.5 MHz /7.5 MHz
3. Grey scale: 256
4. 10.4’’SVGA display
5. Main power supply: AC110/230V, 50/60Hz
6. Power consumption: ≤100VA
7. Overall dimension for main unit: approx. 387×319×270 mm(L×H×M)
8. Weight of main unit: approx. 11 kg (exclusive of accessories)

Primary functions
1. Display mode: B, B/B, B/M, M, or 4B
2. Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s.
3. Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.6,× 2.0, ×2.4 ,×3.0
4. Depth enhancement/pan function
5. Local zoom
6. 8 stages TGC adjustment.
7. Single-point, multi-point or dynamic focusing.
8. Frequency conversion
9. Angle change.
10. Frame correlation function
11. Gamma correction and edge enhancement for image after-processing.
12. Image freeze/unfreeze.
13. Vertical, horizontal flip and B/W conversion.
14. Case information, image annotation and auto time display.
15. Body marks
16. Measurement of distance, circumference, area, volume, slope, heart rate and cycle.
17. OB package including 10 tables, automatic calculation of EDD and fetus weight
18. Energy-saving.
19. 120 frames image storage.
20. 256 frames cine loop
21. PAL-NTSC switchable.
22. Chinese-English interconversion.
23. OB report.
24. Image transfer computer by USB interface

Standard Parts:
·Main unit 1PC
·3.5MHz convex probe 1PC
·Two probe connectors
·pseudo color

Optional Parts:
·5.0MHz micro-convex probe for pediatric
·6.5MHz intra-vaginal convex probe
·7.5MHz high frequency linear probe
·trolley
·thermal printer
·USB data line & software
