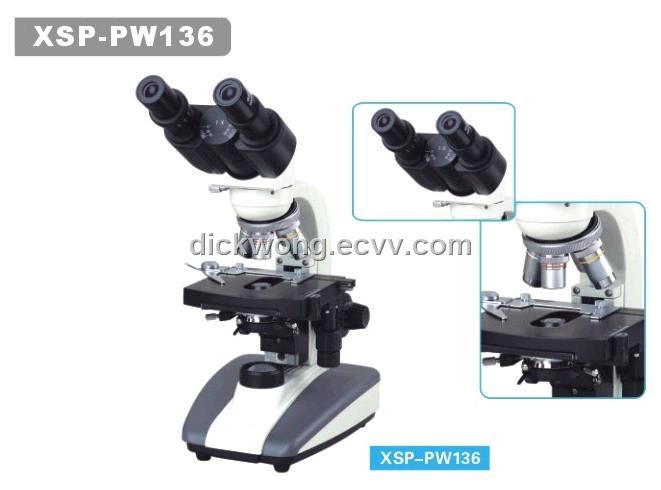

Biological Microscope XSP-PW136

Detailed Product Description

Specification:
Magnification range: 40X-1000X
Eyepiece tube:
Seidentofp type Binocular,
30?inclined;
Diopter adjustment;
Interpupilary distance adjustment: 55-75mm

Nosepiece:
Quadruple click-stop, revolving mechanism with multiple ball bearings

Eyepiece lens: WF 10X eyepiece

Coarse and fine focusing:
Coaxial coarse/fine focusing with cross roller guide incorporated;

Mechanical stage:
Double-plate system stage with Removable slide holder;
Stage size 125 (W) x 120 (D) mm;
Travel area 70 (X) x 30 (Y) mm with a right-hand stage handle;
Focusing range: 20mmFocusing
interval: 0.002mm

Condenser:
Abbe type N.A. 1.25 condenser with iris and diaphram & filter

Objective lenses:
Achromat 4X, N.A. 0.10
Achromat 10X, N.A. 0.25
Achromat 40X, N.A. 0.65, spring loaded
Achromat 100X oil, N.A.1.25, spring loaded

Illumination: Halogen 6V-20W, 220V / 110VBuilt-in Illuminator systemAdjustable brightness
--------------------------------------
Standard accessory:
6V-30W spare halogen lmp ---1pc
BGX1-20(0.5A) fuse ---2pcs
Blue ground glass filter---1pc
immersion---1 bottle
Dust cover --- 1pc
--------------------------------------
Optional accessories:
Eyepiece: WF16X, WF20X
Objective: 60X(S), 20X
