Detailed Product Description
We are professional solar and recycling energy manufacturer and supplier in china, our product line including non-pressure series solar water heater (one pipe inlet-outlet/two pipe inlet-outlet solar water heater), pressure series solar water heater (Pre-heated solar water heater/Pressurized solar water heater/Double tank solar water heater), Split solar water heater (U pipe type solar collector/Heat pipe type solar collector/Split pressurized water tank/The accessories), All-glass evacuated solar collector tubes, solar collector manifold, glass evacuated tubes and heat pipe and so on. Our company is No.1 in china solar industry export since 2004.
------------------------------------------------------------------

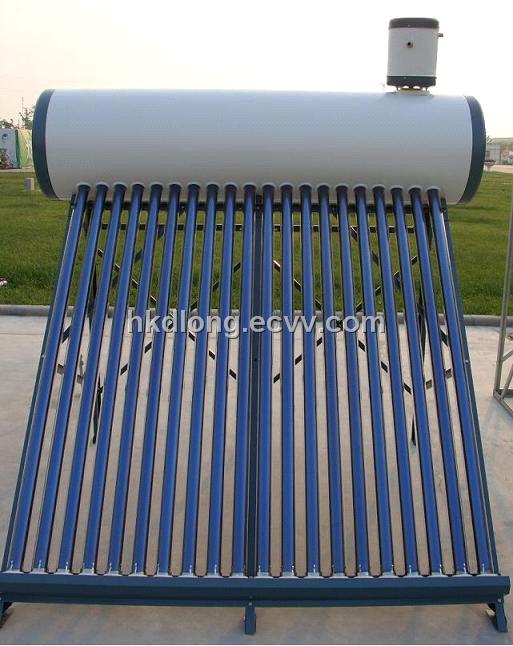

This product is the Non-Pressure Series Solar water heater:
Two Pipes Inlet-Outlet type(add water automatically)
The characteristic of this non-pressure solar water heater(thermosiphon system with tubes):
1) The design of this type uses the sample is according with the international fashion trend,it is easy to operate.
2) The design is scientific and reasonable,it could always provide hot water.
The material of this non pressure solar water heater:
1) Inner tank:stainless steel SUS304-0.5mm
2) Vacuum tube:QB-AL-N/AL-47-1500/58-1800
3) Outer tank:painted steel-0.4mm/aluminum-zinc coated steel-0.45mm/stainless steel SUS304
4) Frame:coated galvanized steel-1.5mm;stainless steel SUS430-1.55mm.
5) The material of insulation:polyurethane 50mm/60mm/65mm.
6) The reflector of this solar water heater:aluminum component;AL99.85% surface oxidation;stainless steel
The details of this non pressure solar water heater:
|
Type |
Area( ㎡ ) |
Vacuum tube |
Volume(liters) |
Gross wet(kg) |
|
?(mm) |
Length(mm) |
Qty(pcs) |
|
TZ47/1500-15 |
1.87 |
47 |
1500 |
15 |
90 |
55 |
|
TZ47/1500-15 |
1.87 |
47 |
1500 |
15 |
130 |
58 |
|
TZ47/1500-18 |
2.25 |
47 |
1500 |
18 |
110 |
63 |
|
TZ47/1500-18 |
2.25 |
47 |
1500 |
18 |
150 |
66 |
|
TZ47/1500-20 |
2.50 |
47 |
1500 |
20 |
120 |
69 |
|
TZ47/1500-20 |
2.50 |
47 |
1500 |
20 |
165 |
74 |
|
TZ47/1500-24 |
3.00 |
47 |
1500 |
24 |
140 |
77 |
|
TZ47/1500-24 |
3.00 |
47 |
1500 |
24 |
200 |
82 |
|
TZ47/1500-30 |
3.75 |
47 |
1500 |
30 |
170 |
88 |
|
TZ47/1500-30 |
3.75 |
47 |
1500 |
30 |
245 |
93 |
|
TZ47/1500-36 |
4.50 |
47 |
1500 |
36 |
205 |
100 |
|
TZ47/1500-36 |
4.50 |
47 |
1500 |
36 |
300 |
109 |
|
TZ58/1800-12 |
2.24 |
58 |
1800 |
18 |
120 |
46 |
|
TZ58/1800-14 |
2.60 |
58 |
1800 |
14 |
140 |
52 |
|
TZ58/1800-16 |
3.00 |
58 |
1800 |
16 |
160 |
59 |
|
TZ58/1800-18 |
3.40 |
58 |
1800 |
18 |
180 |
65 |
|
TZ58/1800-20 |
3.70 |
58 |
1800 |
20 |
200 |
71 |
|
TZ58/1800-24 |
4.50 |
58 |
1800 |
24 |
240 |
79 |
|
TZ58/1800-30 |
5.60 |
58 |
1800 |
30 |
300 |
98 |
The Principle of this solar water heater can get from us.
