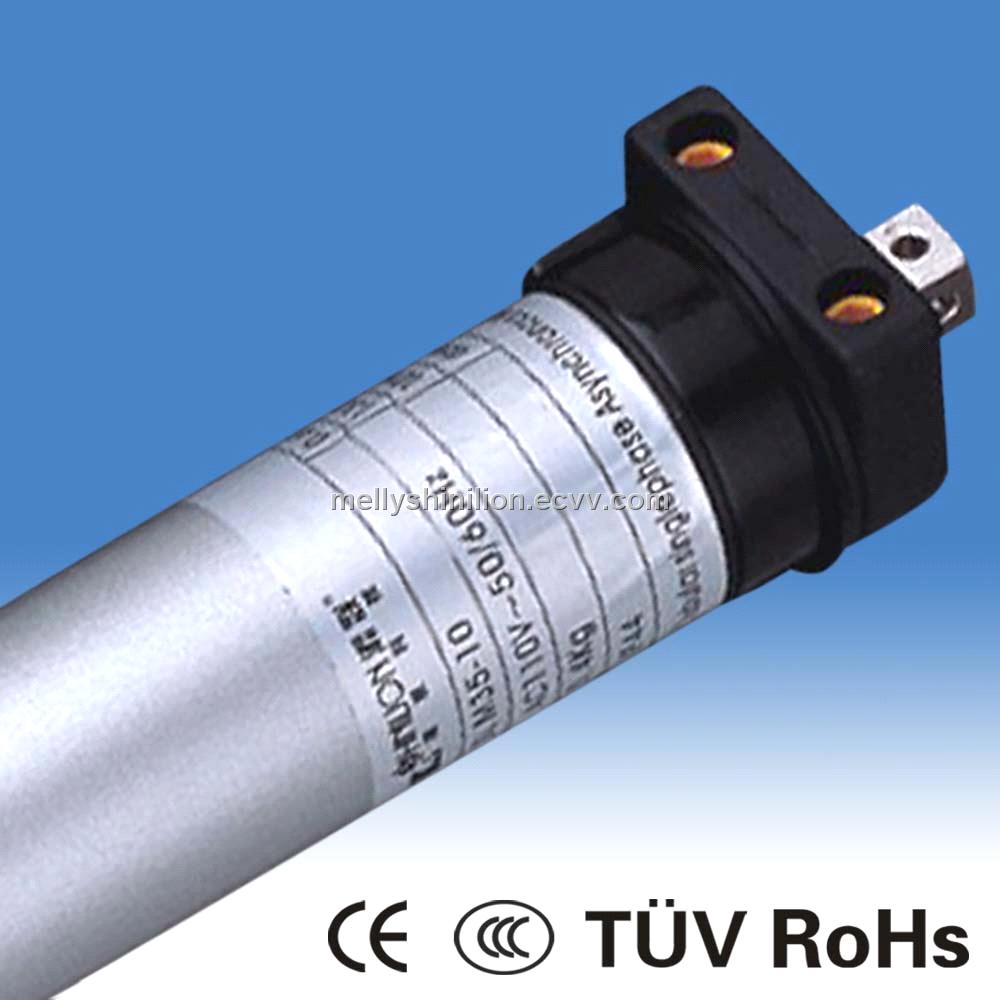

Tubular Motor (SL M35)

Detailed Product Description

Tubular Motor Series : Tubular Motor (SL M35)

·Description of products

This type of motor is designed by international advanced technology, which has high techniques, stable and reliable performance. It is widely used on intermediate and small curtain, screen and awning which the load requirement is less than 25kg.

Product Mix

Model SLM35	3	3	6	8	10
Voltage	220/230v 50/60HZ	220/230v 50/60HZ	220/230v 50/60HZ	220/230v 50/60HZ	220/230v 50/60HZ
Power ( w)	135	155	135	155	180
Nominalspeed	17pm	32rpm	17rpm	17rpm	17rpm
Nomial torque	3Nm	3Nm	6Nm	8Nm	10Nm
Lifting Weight	8.7	8.7	17.5	23.3	29.1
Work time	4min	4min	4min	4min	4min
Noise	<45	<45	<45	<45	<45
Insulationlevel	B	B	B	B	B
Protection	IP44	IP44	IP44	IP44	IP44
TubeDiameter	35mm	35mm	35mm	35mm	35mm
Voltage	1.8KV/1S	1.8KV/1S	1.8KV/1S	1.8KV/1S	1.8KV/1S

Apply range

It is widely used on intermediate and small curtain, screen and awning which the load requirement is less than 25kg.
