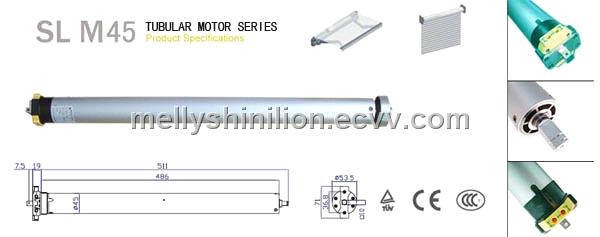

Tubular Motor (Sl M45) FOR DOOR AND SHUTTER
With the advanced design (electronic, mechanicand control mixed together), it has characters of conpact structure, big torque, sensitive limited switch and accuracy. This type of motor can be used in curtain, metal rolling door, and windows etc. Which the maximum lift capacity is less than 80kg. (Note: The model with the appendix "Y" means it has the manual function in case of the power off. )
Model SLM45 20 30 30Y 40 40Y 50 50Y Voltage 220/230v 50/60HZ 220/230v 50/60HZ 220/230v 50/60HZ 220/230v50/60HZ 220/230v 50/60HZ 220/230v 50/60HZ 220/230v 50/60HZ Power ( w) 160/180 240/260 240/260 240/280 240/280 240/280 240/280 Nominalspeed 12rpm 12rpm 12rpm 12rpm 12rpm 12rpm 6rpm Nomial torque 20Nm 30Nm 30Nm 40Nm 40Nm 50Nm 50Nm Lifting Weight 58.3 87.5 87.5 116.6 116.6 131 131 Work time 4min 4min 4min 4min 4min 4min 4min Noise <58 <58 <58 <58 <58 <58 <58 Insulationlevel B B B B B B B Protection IP44 IP44 IP44 IP44 IP44 IP44 IP44 TubeDiameter 45mm 45mm 45mm 45mm 45mm 45mm 45mm Voltage 1.8KV/1S 1.8KV/1S 1.8KV/1S 1.8KV/1S 1.8KV/1S 1.8KV/1S 1.8KV/1S
This type of motor can be used in curtain, metal rolling door, and windows etc. Which the maximum lift capacity is less than 80kg.
