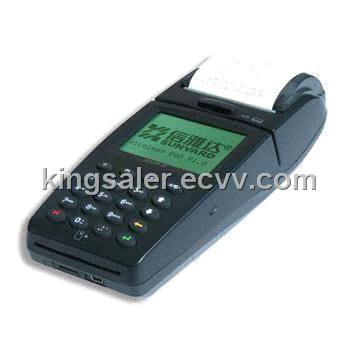

Sunyard GPRS/CDMA pos S520

With the built-in magnetic stripe reader and smart card reader, it can be used to read all kinds of debit cards, credit cards and electronic wallets. It is a mobile portable payment terminal, which performs perfectly in restaurants, nightclubs, supermarkets and so forth. Sunyard S520 Series POS has already got EMV Level 1&2 approval and CE certification.

Specifications:1) CPU: dual CPU design, Motorola FLX68K kernel2) Memory: 8mb SRAM memory chip and 2 Flash3) Communication: supports GSM CSD, SMS 4) Supports GPRS, CDMA, etc. wireless network 5) Card interface: tracks 2 and 3, up to ISO7810 and ISO7811; LRC verification6) IC card reader: 1 IC card ISO7816-1-2-3-4T=0/T=17) SAM card: supports 1 SAM card8) Display: 132 x 65 dots graphic backlight display9) Printer: high speed and thermal printer 10) Keyboard: 20-key ergonomic keyboard including 10 number keys and 10 function keys 11) PIN pad: secure internal PIN pad, with 10 primary keys memory12) Physical connectors: 1 RS-232 connector and 1 RJ45 connector 13) Security modules: embedded security modules14) Power: standard adapter type charger (3C certification)15) Battery: 7.4V lithium polymer16) Charge time: 1 hour17) Operating capacity: more than 200 transactions per charge18) Environment temperature: between 0 ~ 70^oC 19) Developing environment: Linux operating system ANSI C language programmed20) Dimensions: 21 x 6.5 x 8.3cm21) Weight: 620g22) EMV Level 1&2, CE
