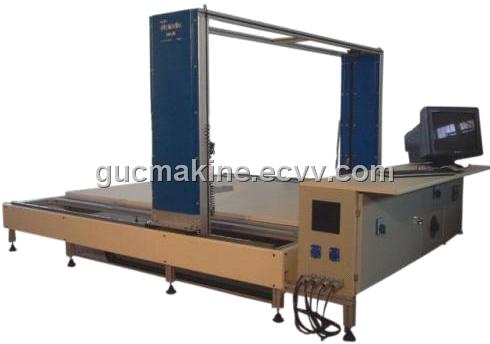

2 Axis CNC Foam Cutting Machine

CNC 2 AXIS FOAM CUTTING MACHINE

Technical Features

1. Frame is made by steel  material
2. Modular shape created by precious engineering profiles
3. Frame is forced by connecting ends support
4. Precious control obtained by step motors on axial controls
5. The torgue of turning and holding is selected large in that way forced machine
6. Axials are beared and taking out the weights
7. Motor drivers has high amper capacity
8. On dc feding source used of switchmode sources
9. Cutting wire temperature controlledby its own board
10. Electrical board is supplied as a standart equipment
11. Computer  is giving as a standart equipment
12. RS 232 connecting cable is standart for 3 meters
13. There is a gauge to show cutting voltage
14. Cooling fan is standart for electrical board
15. Electrical board is painted by dust paint with RAL 7032 color
16. For emergency there is limit switches on x&y axis
17. It Works with extension like DXF, STL, NC, DNC, GERBER, PTL

Standart machine cutting dimensions are:

x axial  : 2000mm

y axial  : 1200mm

width   : 2000mm
