NAME |

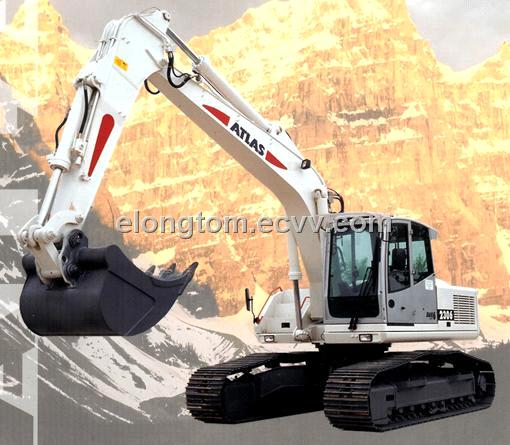

ATLAS2306LC |
|
Engine |
Manufacturer |
Deutz engine Germany |
|
Model |
BF6M2012C |
|
Rated power |
121kw(165HP) |
|
(ISO1585)Max power |
143kw(194HP) |
|
Oylinder/mdel |
Six-in-lin |
|
Olylinder bore and stroke |
101×126mm |
|
Displacement of piston |
6057cm3 |
|
Charging |
Turbo charging inter-cooled |
|
Emission conforms to Euro II |
|
|
Hydraulic system |
Equip with AWE-6 electrical control system adopt load sensing technology for hydraulic system and with precision-ratio fuel saving for fuel supply control. |
|
Two-stage safeguard for hydraulic system against over load |
|
Anti cavitations function, throttle function in the lifting and folding circuit |
|
Keeping pressure and fine control in the lifting and folding circuit |
|
Main pump |
1x axial piston pump |
|
Model |
Linde HPR 135 |
|
System output |
300L/min |
|
Max operating pressure |
340bar |
|
Electrical system |
Operating voltage |
24v |
|
High-performance battery |
2×88Ah |
|
Electrical system accords with stVZO |
|
Equipment |
B66.41 boom over load warning and tubes rupture protection device |
|
Slewing mechanism |
Torque with proportional control, brake flexibility |
|
|
Slewing motor |
Axial plunger motor with pilot valve |
|
Slewing gear box |
Planetary gearing |
|
Slewing brake |
Disc brake |
|
Slewing speed |
9r/min |
|
Slewing torque |
59kNm |
|
Slewing operation is locked by foot brake pedal when straight forward travels, if slewing pressure is lower than 120 bars |
|
Travel mechanism |
Drive unit located inside of the chassis frame |
|
Planetary gear |
|
Automatic acting multi-disc-brake |
|
Double acting traveling brake valve |
|
Dual-stage speed drive motor, automatic change of the traveling speed in case drive resistance increases or decreases |
|
Travel speeds: |
Stage1 |
0-2.5km/h |
|
Stage2 |
0-4.0km/h |
|
Noise level |
Noise level well below BJ limits(dyramic noise measurements acc.2000/14 /BJ regulations) |
|
Outside cab |
104dB(A) |
|
Inside cab |
76dB(A) |
|
Undercarriage |
Special design X-shape frame with high strength high rigidity and long duration |
|
High ground clearance with nice mareuverablility |
|
Longer drive mechanism improves the stability of the machine |
|
Sealed and lubricated track |
|
Stable and long life idler, track roller and carrier roller |
|
High quality driving roller |
|
Configuration parameter of whole machine |
Operating weight |
21330kg(not including operator, lubricant, cooling fluid, fuel) |
|
JibD63.3 length |
2700mm |
|
Equipment |
A63.82 C 66.3m F63.27 |
|
Jib height(max.) |
7950mm |
|
Digging depth(max) |
6300mm |
|
Length of jib(max) |
8000mm |
|
Outreach radius(max) |
9400mm |
|
Outreach length(max) |
4550mm |
|
Outreach height (max) |
9300mm |
|
Bucket pivot |
4900mm |
|
Bucket |
1000L |
|
Jib digging force |
92KN |
|
Bucket digging force |
130KN |
|
Operating system |
Servo device with adjustable dual control system (SAE recommendation): manual control for forward, backward and turning |
|
Foot pedals for forward and backward drive conforming to ISO mode |
