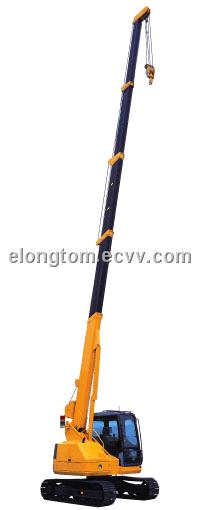

Mini Crawler Crane LC785M-6

Detailed Product Description

Model			LC785M-6
Crane capacity		t×m	4.9t×2.1m
Max. working radius		m×t	14.52m×0.20t
Max.lifting height (on the ground)		m	16.35m
Max.lifting height (underground)		m	-25.1m (4 falls)
Winch system	Hook speed	m/min	27.0m/min [39.0m/min] (4 layers, 4 falls)
Winch system	Hoist wire rope	?×m	IWRC 6×Fi(29) ?10×115m
Telescoping system	Type		Fully automatic 5-section pentagonal telescopic boom
	Boom length	m	4.63~15.63m
	Boom telescoping stroke / time	m/sec	11.0m/24.5sec
Boom hoist system	Hoist angle / time	deg/sec	-2~80deg/12.5sec
Swing system	swing angle / time	deg/rpm	360deg/2.4rpm
Travel system	Drive method		Both-side independent steering control, Hydraulic piston motor with built-in automatic brake, planet reduction gears, sprocket, crawler
	Travel speed	km/h	0~3.8
	Gradability	deg	20
	Crawler ground length × width	mm	2,235×450
	Ground pressure	kpa [kgf/cm²]	46.8 [0.48]
Engine	Model		KOMATSU S4D95LE-3-A
	Displacement	L [cc]	3.260 [3,260]
	Rated output	kw/min^-1 [ps/rpm]	40.5kw/1,850min^-1 [55PS/1,850rpm]
	Starting method		Electric starting
	Fuel / Fuel tank capacity	L	Diesel/141.0
Pick & Carry capacity		kg	2,000kg
Overall length × width ×height		mm	5,005×2,350×2,685
Machine weight		kg	9,700kg
Safety device			Overwind protection, Hydraulic safety valve, Wire rope latch, Level, Safety lock lever, Machine body inclination alarm, EMO switch, Moment limiter, Rotary lamp
Options			Rubber pads, Single fall hook
