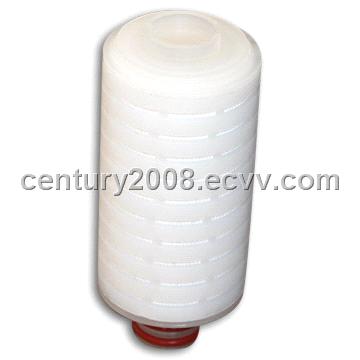

PES filter cartridge

Main advantages:
Using imported PES membrane as filtering material and heat-resistant polypropylene shell or stainless steel shell as internal support, it is made without any additive and medium break off.

The PES membrane is a kind of hydrophilic membrane with unique geometric holes and high flow rate, has low absorption of protein and microorganism. With its good chemical-resistant quality, it is an ideal filtering material. Integrality tests are done to 100% of the filter cartridges.
1) Standard Connections fit most situations;
2) Available in varies of fibers and removal ratings;
3) Pleated design makes removal fast and simple;
4) Excellent for the filtration of costly solutions.

Main technical specifications (10" filterˉ Cartridge)
Effective filtration area: ≥ 0.65square meters
Length: 2.5"ˉ 40"
Normal working temperature: ≤ 80 o C
Maximum working temperature: 90 centigrade ( P ≤ 0.10MPa)
Antiseptic filtration of steam: 125± 2 o C 30min as many as 30 times
PH value: 1-13

Integrity test (minimum bubble point)(25 centigrade water)

0.10 μ ≥0.40 MPa

0.20 μ ≥0.30 MPa

0.45 μ ≥0.20 MPa
