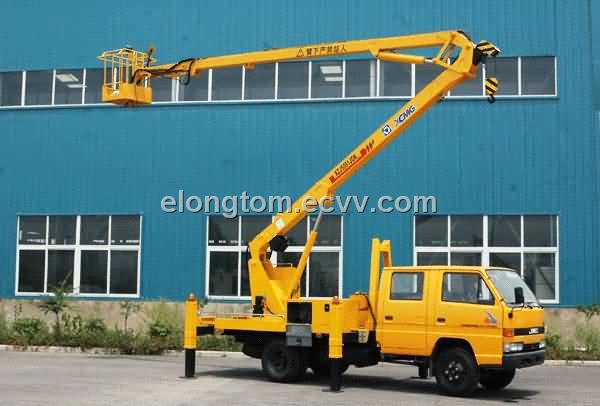

Aerial Working Platform XZJ5061JGK

Detailed Product Description

Model
XZJ5061JGK
Chassis model
JX1050DSL2
Size (L×W×H)
7690mm×2000mm×2935mm
Rated load of platform
200kg
Max working height
16m
Max aerial working radius
2.5m
Max working radius
7.5m
Max lifting capacity
9m
Slewing speed
0-2r/min
Jib full extension period
≤30
Main Features
1. Imported key components, higher reliability, excellent property and long life-span
2. Telescopic working beam, compact structure, high working efficiency and working radius widely.
3. Double work operation, single handle realize operation to double directions, easy and comfortable to operate.
4. Computer control, automatic ranger restrict, dangerous work situation given alarm and excellent safely property.
5. Design with especially saving energy, engine automatically being suitable speed during it Beijing idle speed.
6. The upper and the lower structure automatically inter-lock, safe and reliable operation.
7. Larger span of outriggers, higher stability, outriggers can be operated simultaneously or respectively, suitable for different work situation.
8. Urgent power, can handle sudden trouble.
9. Bucker Beijing placed rear, come in and out freely, reduce the gravity of the whole vehicle and enhance driving property.
