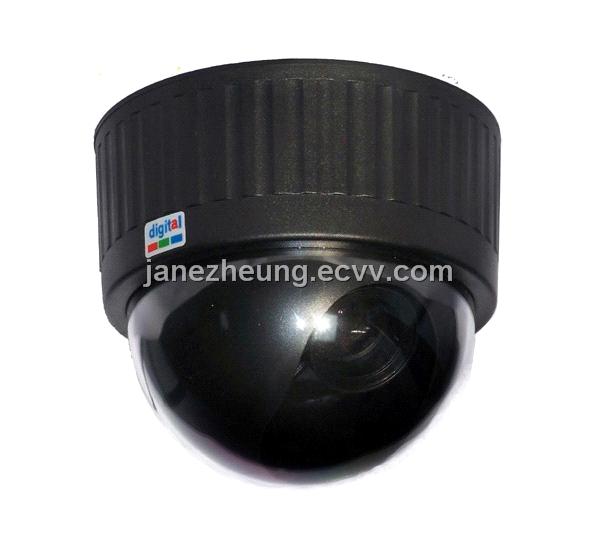

CCD dome camera

Detailed Product Description

Module: VVS-45/VVS-45SQ/VVS-45Q/VVS-45H

1. Signal System: PAL/NTSC

2. Image Sensor: 1/4"SharpCCD;1/4 Sony CD; 1/3 Sony CCD; 1/3 Sony CCD

3. EffectiveCixels PAL:512 (H)X582(V);NTSC:512(H)X49CV)

4. Horizontal Resolution: 420 TV Line; 420 TV Line; 420 TV Line;480TV line

5. S/N Ratio: More than 48 dB

6. Minimum Illumination: 0.1 LUX / F1.2

7. White Balance: Automatic

8. Electronic Shutter: 1/50-1/100,000sec(PAL);1/60-1/100,000sec(NTSC)

9. Lens: 3.5-8mm Lens

10. Gamma Correction: 〉0.45

11. Video Output: Composite Video Output(1Vp-p 75ΩTerminated)

12. AGC/AC: Automatic

13. Power Supply: DC 12V +/-10%

14. Operation Temperature: -10C to +50C

15. Weight: 500g
