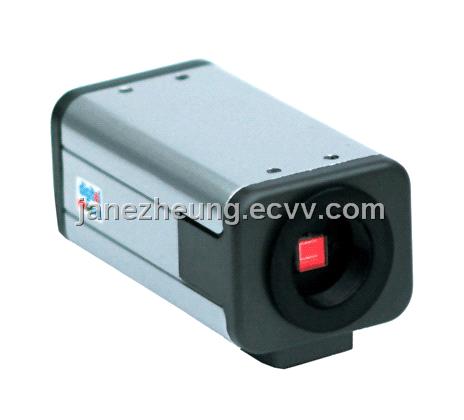

cctv CCD box camera

Detailed Product Description

VVS-56/ VVS-56SQ/ VVS-56Q/ VVS-56H

Module VVS-56/VVS-56SQ/VVS-56Q/VVS-56H

1. Image Sensor: 1/4 Sharp 1/4 Sony 1/3 Sony 1/3 Sony

2. NO. of Effective Pixels: PAL:500 (H)X582(V);NTSC:510(H)X492(V)

3. Horizontal Resolution: 420tvl; 420tvl;420tvl420tvl;480tvl

4. Minimum Illumination: 0.1 Lux

5. S/N Ratio: More than 48dB

6. Electronic Shutter: 1/50~1/100,000sec(PAL),1/60~1/100,000sec(NTSC)

7. BLC: ON/OFF

8. AWB: Automatic

9. AGC: ON/OFF

10. Iris Control: DC/ Video

11. Gamma: 0.45

12. Video Output: BNC BNC 1.0Vp-p 75ΩTerminated

13. Sync mode: INT

14. Lens : Mount CS/C with Ring

15. Operation Temperature: -10 C to +50 C RH95%MAX

16. Power Consumption: DC 12V+/-10%

Weight: 500g
