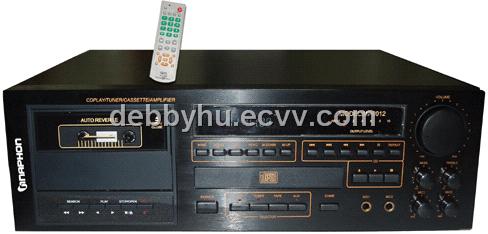

All in one Amplifier MP-8012

Detailed Product Description

^FEATURES

^{All-in-one public address device combining DVD player, full-logic cassette player, tuner ,pre-amplifier and power amplifier together.}

^{2 Microphone inputs with individual volume control}

^{AUX line input/output, for additional mixer or amplifier link}

^{1 video output for TV link}

^{5 unit LED level meter}

^{Built-in LED level meter}

^{Built in chime generator}

^{Two level of priority muting:MIC1>chime}

^{Bass, Treble, and master volume control}

^{3 types of speaker output:100V,70V and 4ohm-16ohm}

^Model	^{MP8006 MP8012 MP8025 MP8035}
^{Rated output power}	^{60w 120w 250w 350w}
^{Output Regulation}	^{Less than 5%}
^{Speaker output}	^{Balance 4ohm,70v,100v}
^{Aux output}	^600ohm,1V
^Input	^{Mic:600ohm,Aux:10kohm}
^{Frequency Response}	^100Hz-10KHz
^Distortion	^{Less than 0.5%}
^S/N	^{MIC:66db Aux:70db}
^Tone	^{Bass:+/-10db,Treble:+/-10db}
^Protection	^{AC fuse, DC voltage, overload and short circuit}
^{Gross weight:}	^{19kgs 20kgs 24kgs 25kgs}
