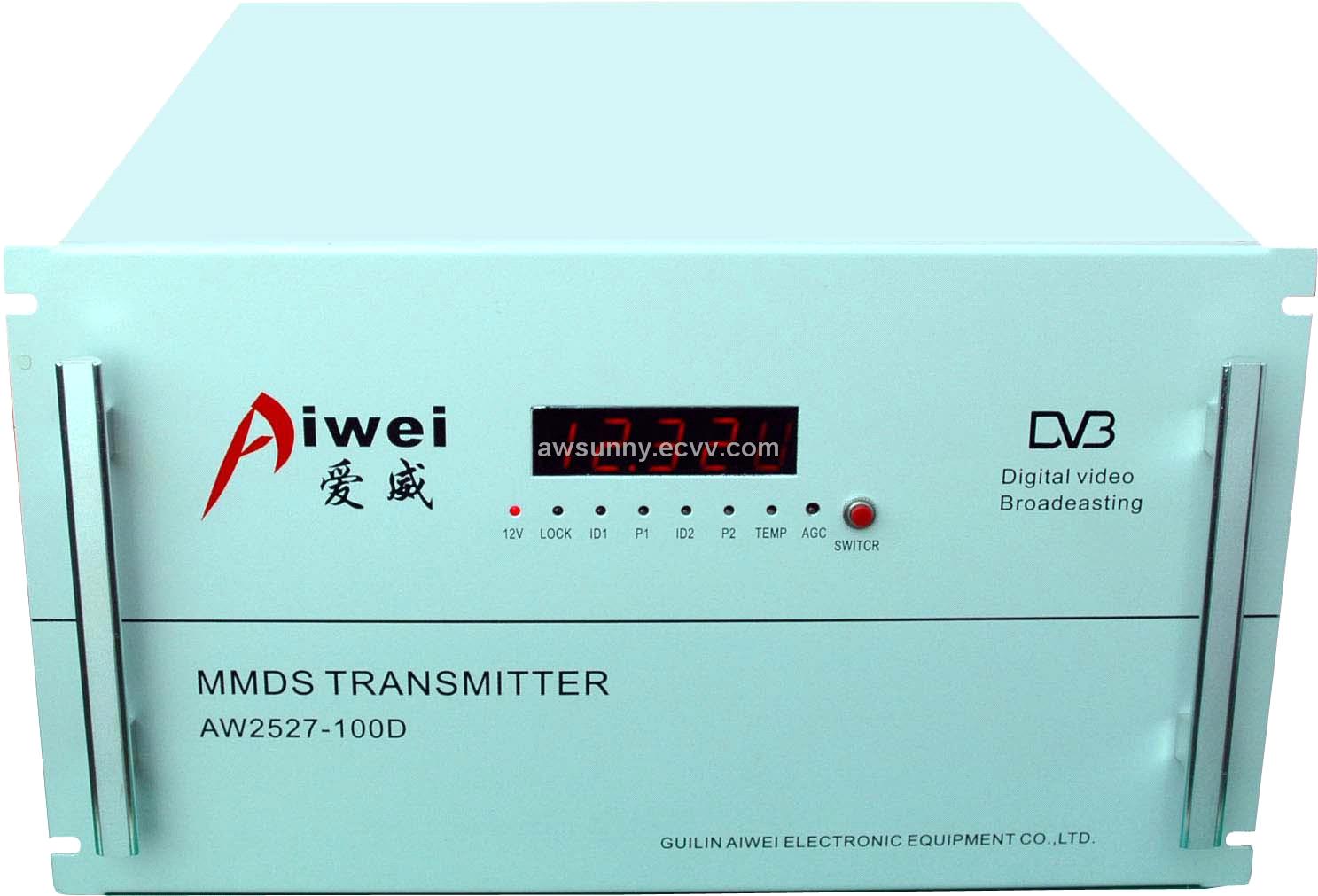

Digital MMDS Broadband Transmitter

Detailed Product Description

parameters	symbol	min		sample			max		unit
output frequency range	F_OUT	2500					2700		MHz
tdB gain contract point output power	P1dB	10	30		50	100		200	W
digital average output power (QPSK modulation)	P_AVG	2.5	7.5		12.5	25		30	W
frequency conversion gain flatness @200MHz bandwidth	△G_200MHz			1			2		dB
input frequency range	F_IN	600					800		MHz
input signal level	P_IN	75		85			95		dBmV
gain attenuation range（4-bit）	Atten	0					15		dB
ALC range	△G_ALC			±5/±0.5					dB
output power stability (ALC state）	△P_OUT						1		dB
local oscillation frequency stability	△flo						5		KHz
local oscillation SSB phase noise @10KHz	N?			-95			-90		dB /hz
group delay	GD						20		ns
input port return wave loss	RL_IN	14							dB
output port return wave loss	RL_OUT	17							dB
input port impedance/connector	50W/N-50K
output port impedance/connector	``50W/N-50K
