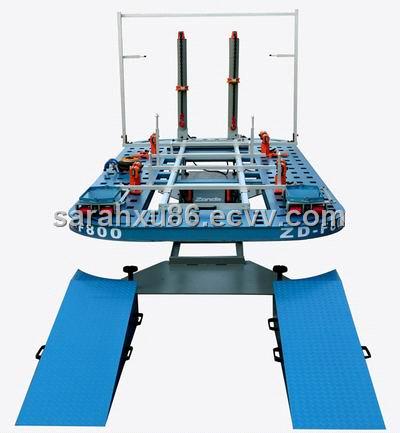

Car Collision Repairing Equipment/Car bench

Product introduction:
Hydraulic inclined lifting platform provides smooth operation, convenient for vehicles on and off.
The pulling tower can move arbitrarily at any position around the plate. Easy to operate and saving time & power.
Double-tower design provides more possibilities for bench operation .
Tower hydraulic cylinder operated vertically , with strong and accurate pulling power while without any extra power consumption.
Considering rectification of any kinds of collision distortion, it is equipped with many kinds of bench tools.
The three-dimensionally coordinate-measure of car body can be done by measuring system with high accuracy. Easy to operate.
Abundant car data handbook is prepared to duly provide the latest data.
The unique design of clamp could easily provide fast installment and clamping for all kinds of light vehicles.

Specifications:
Platform length: 18 feet (5500mm)
Platform width: 2270mm
Platform height: 560mm
Max. Pulling force: 100KN
Tower traction range : 360°
Pneumatic pressure: 6-8bar
Max lifting load:5000 kg
Measuring precision: 1mm
