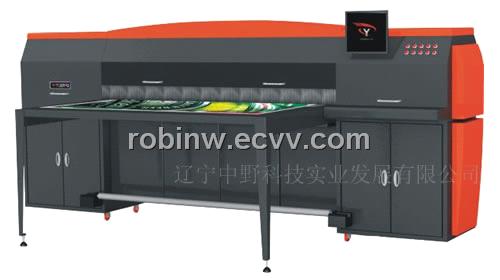

Large Format Printer:3200UVA

Detailed Product Description

Name：	3200UVA
Class：	ZY-SKUVA series
Print technology：	Drop-on-demand Piezo electric
Printhead：	4/5/7/10(spt510)
Print width：	3.20M
Print high：	5cm
Resolution：	1440dpi max
Speed：	2pass 48m/h; 4pass 32m/h; 6pass 16m/h
Locating mode：	Raster /servo
Color：	CMYKWLCLM
Media width：	3.2M
Media handl：	Roll to roll Sheet to sheet
Media types：	orrugated,foam ore, gatorboard;sintra(PVC), eramic tiles,glass,plexiglass, wood, sheet metal, paper,vinlys, dhesive back vinyls, fabrics
Drying system ：	Uv lamp
File format：	TIFF,Postscript 3,JPEG,EPS,PDF
Working process：	Printmon software for windows xp
Rip：	Photoprint /maintop
Power supply：	50hz/60hz 220v(10%)20A
Operation environmeng：	(Tempperature )18-26 (Humidity )40%-70%
Dimesion：	5.2m1.6m1.4m
Weight：	1500Kg
