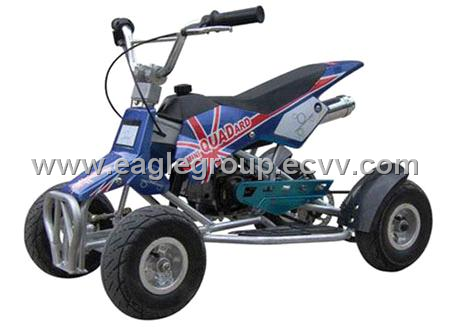

49cc Mini ATV(YG-ATV49-1)

Specifications
Engine Type :2 stroke, air-cooled,fully automatic
Final Drive: chain drive
Bore x Stroke(mm) :39x41.4
Piston Displacement(cc) :43/49cc
Compression Ratio: 8.2:1
Maximum Power(kw/r/min) :2.5kw/8500rmp
Max Torque(N.m/r/min) :2.7N.m/6500rpm
Starter Sytem: pull start type
Lubricaiton :automatic oil injection
Trasmission :automatic
overall LxWxH(mm) :1000x390x630
Packing Diemsion LxWxH(mm) :1000x600x620
Wheel Base(mm): 850
Seat Height(mm) :520
Ground Clearance(mm): 63
Brake(Front/Rear): drum/disc
Tire, Front :3.00-4"
Tire, Rear :3.00-4"
Frame welded: high-strength steel tubes
Ignition Type: CDI
Fuel Tank Capacity (L): 1
Fuel :petrol, 1:25 engine oil mixing
Front Suspension: swing arm
Rear Suspension :swing arm
Max Speed(km/h):40
Max. Load Capacity(kg) :45
Battery Specification: 12V12AH
Person: 1
NW(kg) :32
GW(kg) :35
Quantity of Loading :80pcs /20'ft;160pcs /40'ft;160pcs /40'HQ

Post Date:	8/11/2008
Expiry Date:	8/6/2009
FOB Price:	USD110-190Ningbo
