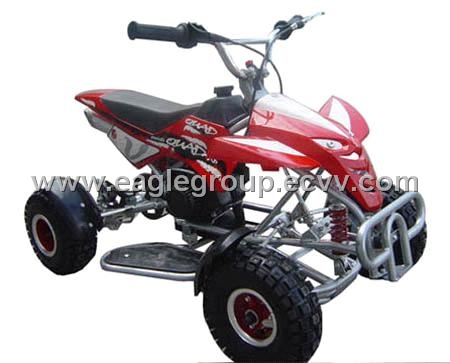

49cc Mini Quad(YG-ATV49-2)

Specifications
Engine Type :single cylinder,2 stroke, air cooled
Final Drive :chain drive
Bore x Stroke(mm) :39 x 41.4
Piston Displacement(cc) :49
Compression Ratio: 7.6:1
Maximum Power(kw/r/min) :2.5kw/8700rpm
Max Torque(N.m/r/min) :3.2N.m/8000r/min
Starter Sytem : manual hand pull
Trasmission :CVT
overall LxWxH(mm) :1000 x 590 x 630
Packing Dimesion LxW xH (mm) :1040 x 640 x 580
Seat Height(mm) :500
Brake(Front/Rear): rear disc brake
Tire, Front :3.00-4
Tire, Rear :3.00-4
Wheel Rim : slight alloy, front 4"-51, rear 4"-95
Ignition Type : contactless
Fuel Tank Capacity (L) :1
Fuel/Oil unleaded:petrol, 25:1 2 stroke engine oil mixing
Max Speed(km/h) :42
Max. Load Capacity(kg): 95
NW(kg): 30
GW(kg): 34
Quantity of Loading: 80pcs/ 20'ft;160pcs/ 40'ft

Post Date:	8/11/2008
Expiry Date:	8/6/2009
FOB Price:	USD90-150Ningbo
