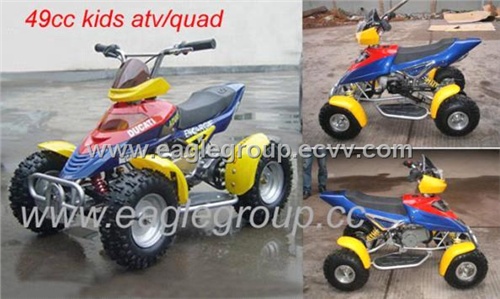

49cc Kids ATV(YG-ATV49-6)

Specifications
Engine Type: single cylinder,2 stroke, air cooled
Final Drive :chain drive
Bore x Stroke(mm) :39 x 41.4
Piston Displacement(cc) :49
Tank capacity :1L
Maximum Power(kw/r/min) :2.5kw/8500rpm
Max Torque(N.m/r/min) :3.0N.m/6500r/min
Starter Sytem :hand pull start
Trasmission: Automatic
overall LxWxH(mm) :1040x640x710mm
Packing Dimesion LxW xH (mm) :1030x580x490mm
Wheel Base(mm) :680
Seat Height(mm): 450
Ground Clearance(mm) : 100
Brake(Front/Rear): rear/disc
Tire, Front: 13X4.10-6NHS
Tire, Rear :13X5.0-6NHS
Ignition Type :CDI
Fuel Tank Capacity (L) :2.5
Engine Oil Capacity(L) :0.95
Distance(front/rear wheel): 505mm
Distance(axle): 695mm
Front suspension :leading arm
Rear suspension :Swing arm
Max Speed(km/h): 50km/h
Max gradability(degree) :16
Max. Load Capacity(kg): 80kg
Oil type :1:25 oil engine mixtures
NW(kg) :45
GW(kg) :50
Quantity of Loading: 120pcs/20'ft;240pcs/ 40'ft; 270pcs/ 40’hq

Post Date:	8/12/2008
Expiry Date:	8/7/2009
FOB Price:	USD100-200Ningbo
